Havis Dock for Zebra ET80 & ET85 Tablets with Advanced Port Replication and Tri RF DS-ZEB-402-3

Havis Dock DS-ZEB-402-3

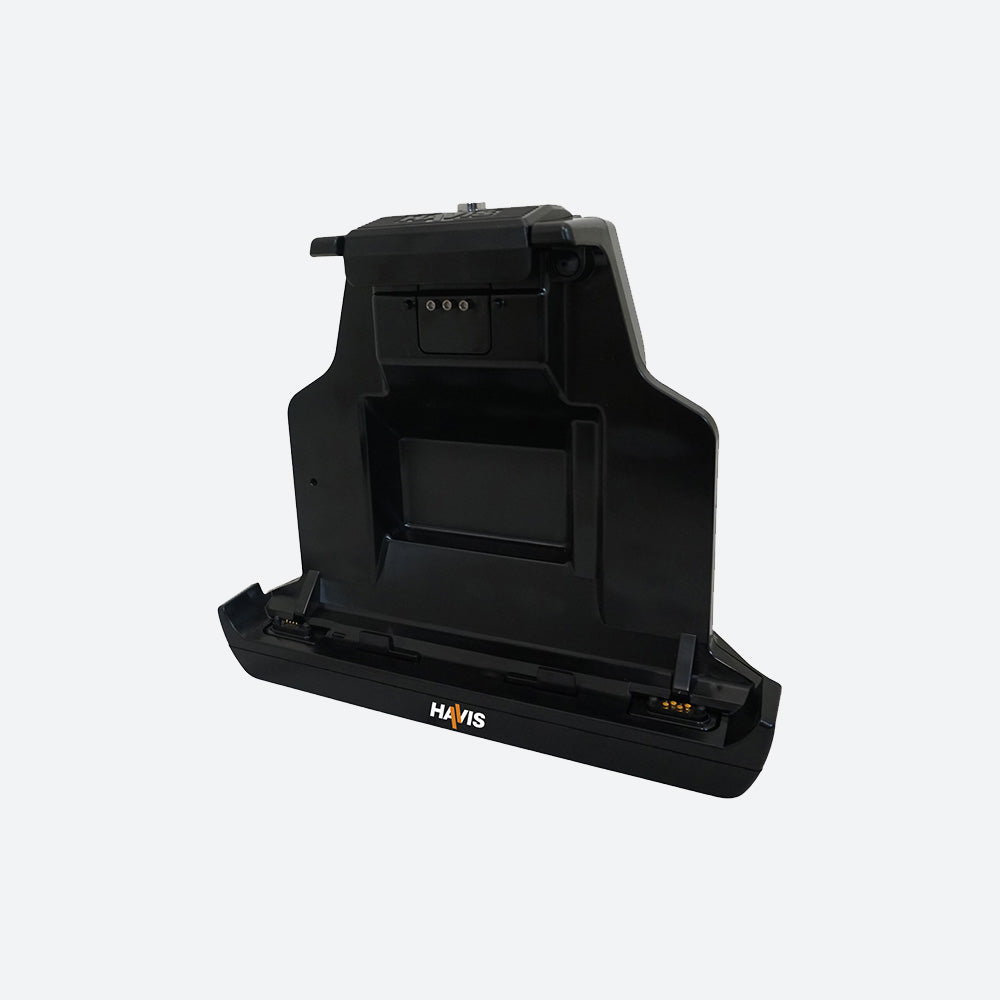

Havis Docking Station for Zebra ET80 and ET85 Tablets with Advanced Port Replication and Triple Antenna Pass-Thru Connection

DS-ZEB-402-3 Features

• Supports Zebra's ET80 & ET85 Tablets in Public Sector, Material Handling, Utility Services, Waste Management and other demanding environments
• Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Side-mounted USB3.0 port
• Equipped with triple pass-through antenna connections
• LED power indicator
• One-handed docking & undocking
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• One-handed docking & undocking
• Requires a Havis-approved external power supply
• Provides access to critical buttons, ports, and bar code scanner when tablet is docked
• Compact & lightweight
• Compatible with the Zebra Stylus Tether, Stylus MPP 2.0, Handle with Stylus Holder, and Shoulder Strap
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in USA

DS-ZEB-402-3 Specifications

Compatible Devices:    Zebra ET80 and ET85 Tablets
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 60° C (-4° F to 140° F); Hot/Cold storage -30° C to 70° C (-22° F to 158° F)

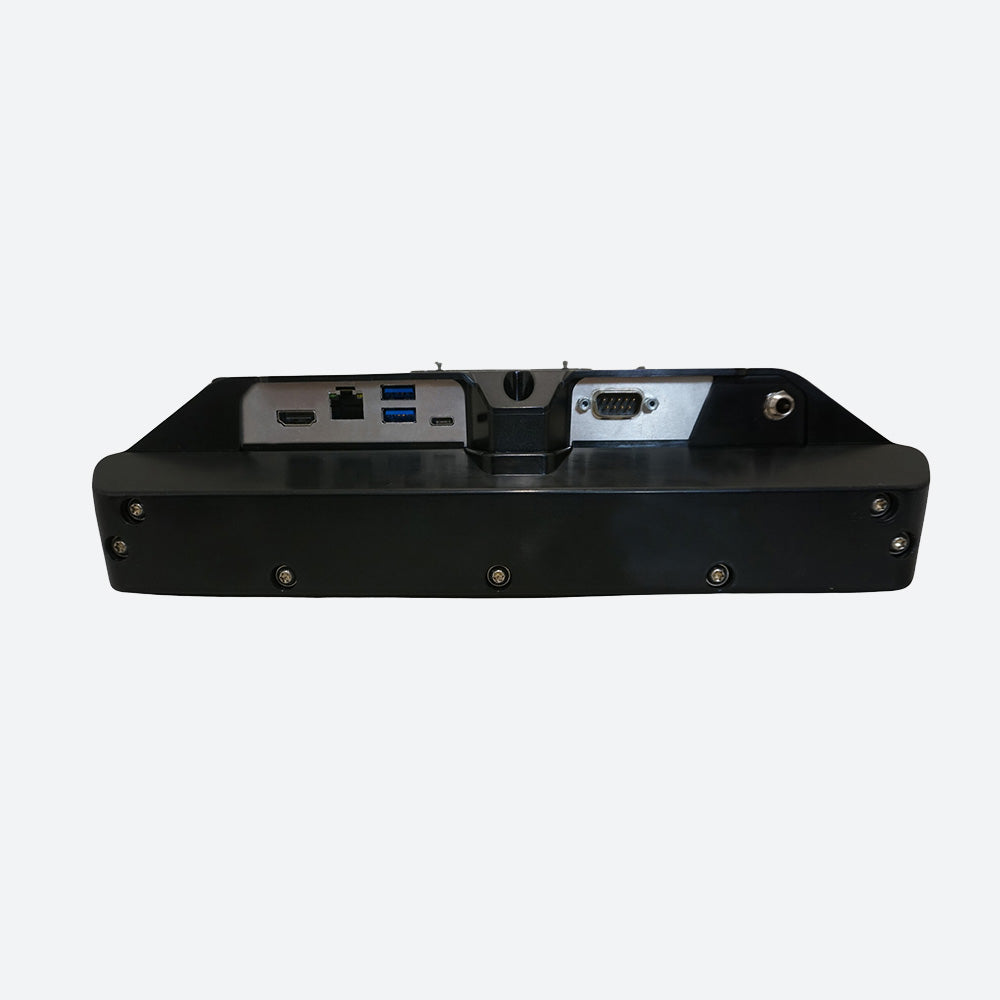

Port Replication:    Advanced: (1) HDMI (3) USB 3.1 (1) USB-C (1) RJ45 Ethernet (1) Powered Serial Port (5V) Antenna type: (3) SMA
Approved power supplies:    LPS-189, LPS-190, LPS-191
Dimensions:    Unlatched: 11.94" (304 mm) H 13.0” (330 mm) W 3.42” (87 mm) D 11.25” (286 mm) H Latched
Product weight:    2.8 lbs (1.27kg)
Gross weight:    3.25 lbs
