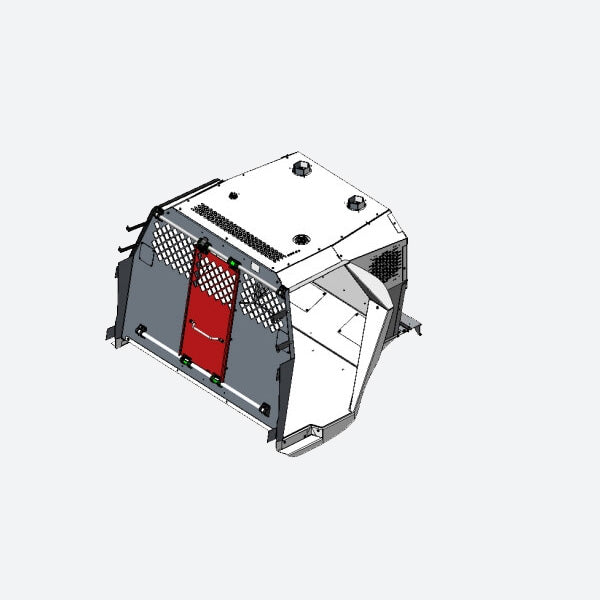

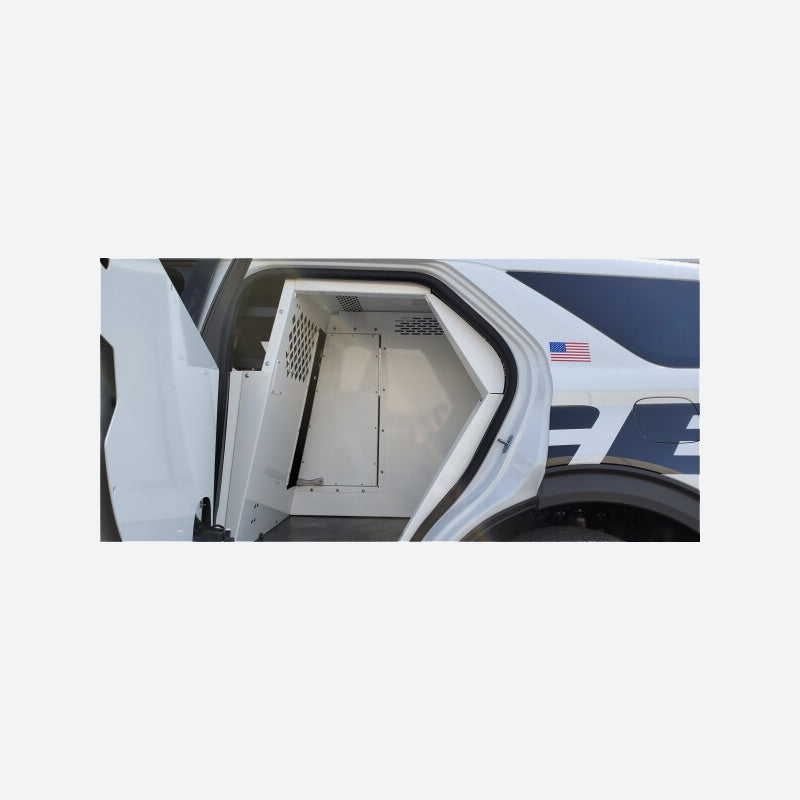

Havis Extended K9 Transport System For 2020-2025 Ford Interceptor Utility – White K9-F28-XL

Havis K9 Transport K9-F28-XL

Havis Extended K9 Transport System For 2020-2025 Ford Interceptor Utility and White

K9-F28-XL Features

• Fits 2020+ Ford Police Interceptor Utility, including hybrid
• The ultimate for K9 and handler comfort!
• Extra-long 45" insert for single or dual dog applications
• Lowest possible floor for ease of entry/egress
• Rattle-eliminating design
• Smooth edges and tight gaps to prevent injury, catch and chew points
• Front slider door exit with full door range of motion left to right and improved sliders to eliminate rattle
• Front bulkhead includes mounting provisions 4" circulation fans (use p/n: K9-A-102, sold separately)
• Easy to install optional dual dog divider available (K9-A-108 white, K9-A-108-B black) and can be mounted in 50/50 or 60/40 positions with provided holes in bulkheads
• Durable white powder coat finish on main components
• Fabricated from Heavy-duty aluminum for long-lasting durability
• Door panels with window guards included, with optional 10" emergency exhaust fan mounting on driver or passenger side (use p/n: K9-A-104 option, sold separately)
• K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidentally being put into the K9 compartment
• Integrated speaker cover in door panels reduces install time and allow vehicle to be restored to OE functionality
• Includes two (2) interior LED dome light with white light for daytime use and red light for nighttime use
• Durable and .25" thick rubber mat lays flat and resists chewing
• Easy to install and includes all hardware

K9-F28-XL Specifications

Compatible:    Works with Havis trunk tray PKG-TTP-INUT-1201-4
Works with OEM rear cargo floor & spare tire cover
SUV kit dimensions:    45" deep by 65" wide by 40" high
Side entry opening dimensions:    24" wide x 37" high
Front entry door opening dimensions:    13.5" wide x 30.25" high
Dimensions:    Measurement from top of K9 floor to ground = 22.75" inches
Rear cargo space behind K9 wall to rear door sill trim is 44" wide x 32" long at 14" high (less front to back length above 15" high)
Vehicle Recommendations:    For K9 applications, it is recommended to order the Interceptor Utility with the OEM optional aux rear air conditioning. (Ford option code 17A)
Gross weight:    300 lbs
