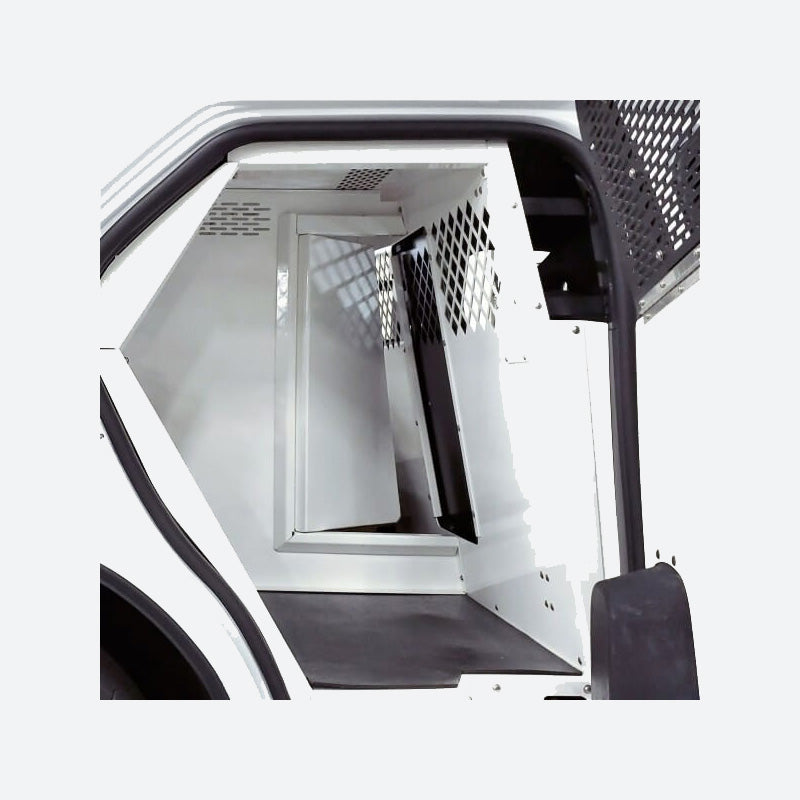

Havis Extended K9 Transport System For 2020-2024 Ford Retail Explorer K9-F29-XL

Havis K9 Transport K9-F29-XL

Havis Extended K9 Transport System For 2020-2024 Ford Retail Explorer and White

K9-F29-XL Features

• The ultimate for K9 and handler comfort!
• Extra-long 45" insert for single or dual dog applications
• Lowest possible floor for ease of entry/egress
• Rattle-eliminating design
• Smooth edges and tight gaps to prevent injury, catch and chew points
• Front slider door exit with full door range of motion left to right and improved sliders to eliminate rattle
• Front bulkhead includes mounting provisions 4" circulation fans (use p/n: K9-A-102, sold separately)
• Durable white powder coat finish on main components
• Fabricated from Heavy-duty aluminum for long-lasting durability
• Door panels with window guards included, with optional 10" emergency exhaust fan mounting on driver or passenger side (use p/n: K9-A-104 option, sold separately)
• K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidentally being put into the K9 compartment
• Integrated speaker cover in door panels reduces install time and allow vehicle to be restored to OE functionality
• Includes two (2) interior LED dome light with white light for daytime use and red light for nighttime use
• Durable and .25" thick rubber mat lays flat and resists chewing
• Easy to install and includes all hardware

K9-F29-XL Specifications

Works with OEM rear cargo floor / spare tire cover or Havis C-TTP-INUT-1200, C-TTP-INUT-1201 and C-TTP-INUT-4
Only works in vehicle without OEM Twin Panel Moonroof
SUV kit dimensions: 45" deep by 63" wide by 40" high
Side entry openings are 24" wide x 37" high
Front entry door opening 13.5" wide x 30.25" high
Measurement from top of K9 floor to ground = 22.75" inches
Rear cargo space behind K9 wall to rear door sill trim is 44" wide x 32" long at 14" high (less front to back length above 15" high)
For K9 applications, it is recommended to order the Interceptor Utility with the OEM optional aux rear air conditioning. (Ford option code 17A)
