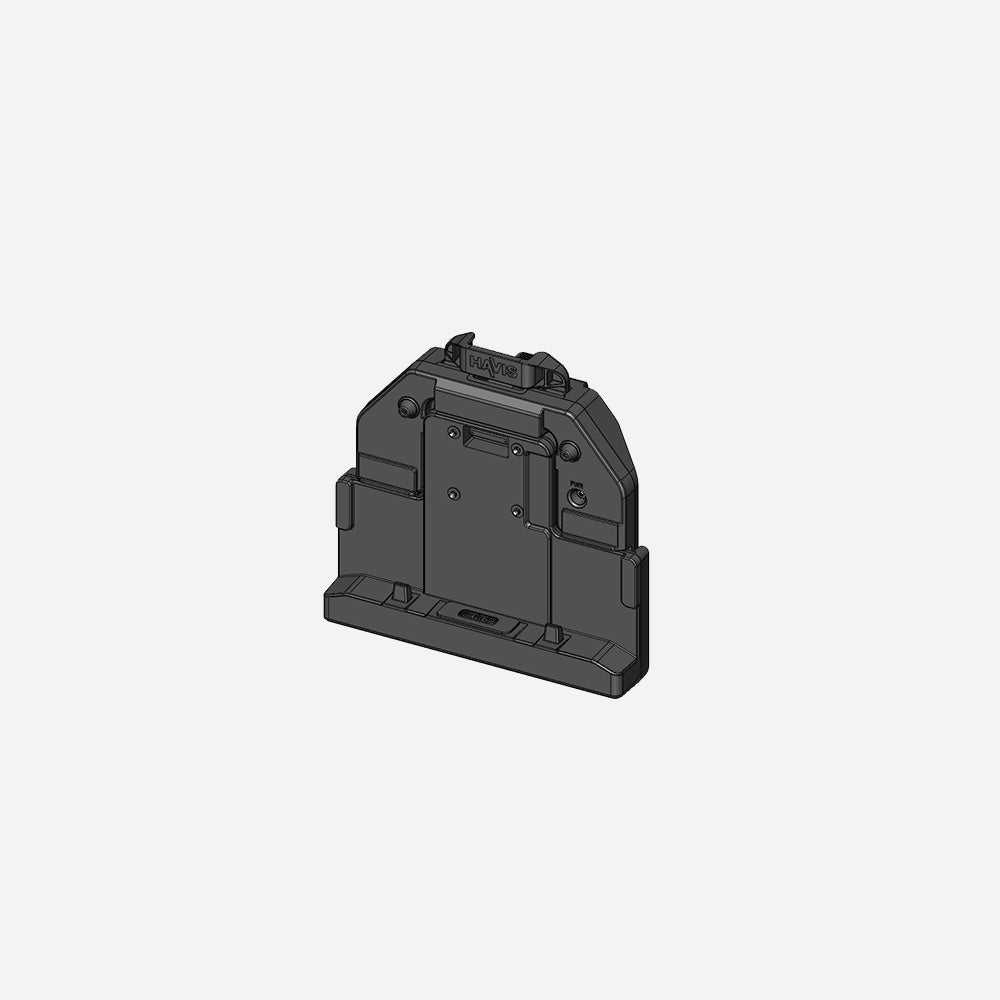

Havis IP65 Dock for Dell’s 7030 Tablet with Internal, Non-isolated Power Supply PKG-DELL-1202

Havis Dock PKG-DELL-1202

Havis PACKAGE and IP65 Docking Solution for Dell 7030 Tablet with Internal, Non-isolated Power Supply (9-36VDC)

PKG-DELL-1202 Features

• Supports Dell's 10” Latitude 7030 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments

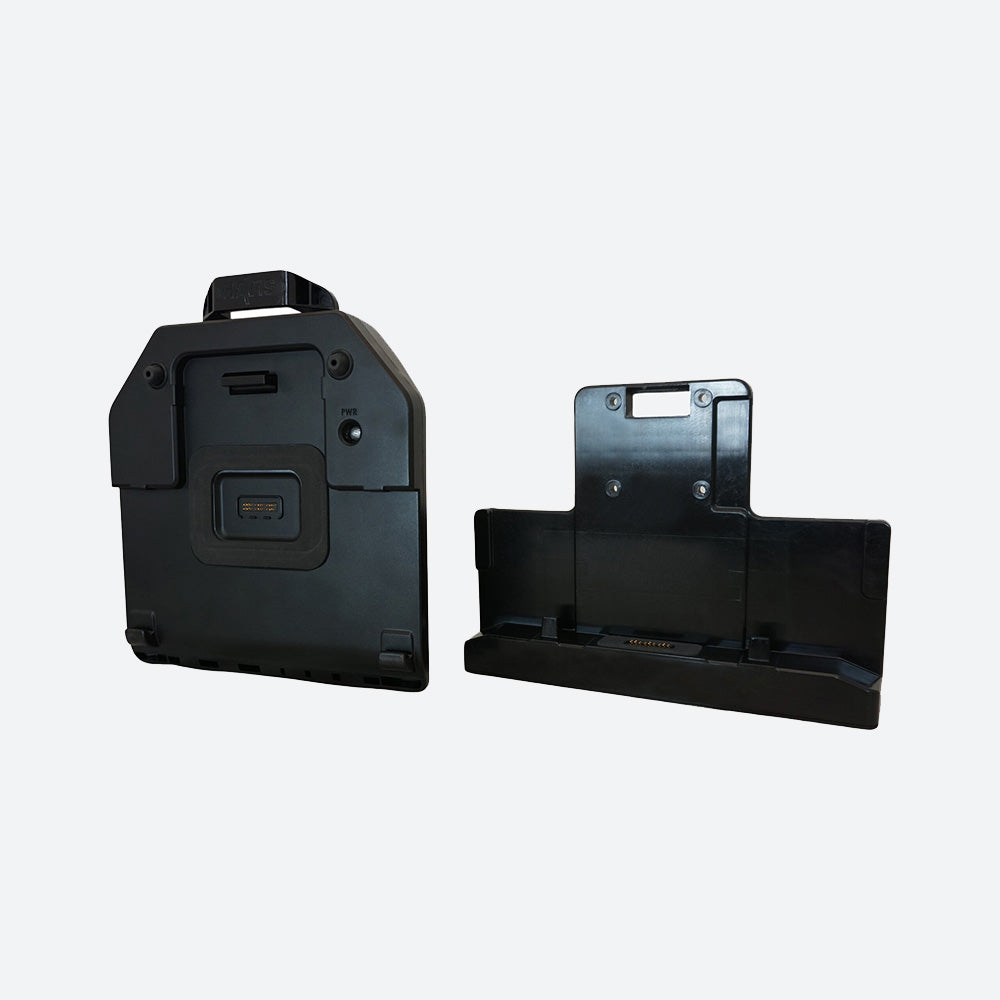

• Unique two-piece design provides IP65 rating while maintaining device mobility
• Havis-designed port replication to connect multiple mission-critical peripherals
• LED power indicator
• IP65 sealed I/O panel accomodates a variety of cable diameters
• One-handed docking & undocking
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Features an internal, non-isolated power supply (9-36V)
• Provides access to all buttons, ports, and bar code scanner both docked and undocked
• Compatible with Dell 7030 tablet accessories including hard and soft handles and shoulder strap
• Compact & lightweight
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock under sealed cover for added security
• Made in USA

PKG-DELL-1202 Specifications

Compatible computer:    Dell 10” Latitude 7030 Rugged Extreme Tablet
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 55° C for DOCK ONLY (-20° F to 131° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F); Ingress Protection Rating: IP-65
Port Replication:    (1) RJ45 Ethernet, (3) USB2.0 Type A, (1) DB9 Serial - 5V powered, (1) DC In port
Dimensions:    Height: 9.64-in (24.47 cm) Width: 9.35-in (23.75 cm) Depth: 3.20-in (8.13 cm)
Product Weight:    Weight: 2.77 lbs (1.26 kg)
Gross weight:    3.25 lbs
