Havis Premium Package – Raised Fold-Up Equipment Tray & Cargo Plate with 200 lbs Lift Struts for 2020-2025 Ford Interceptor Utility PKG-TTP-INUT-1201-4

Havis Cargo Storage PKG-TTP-INUT-1201-4

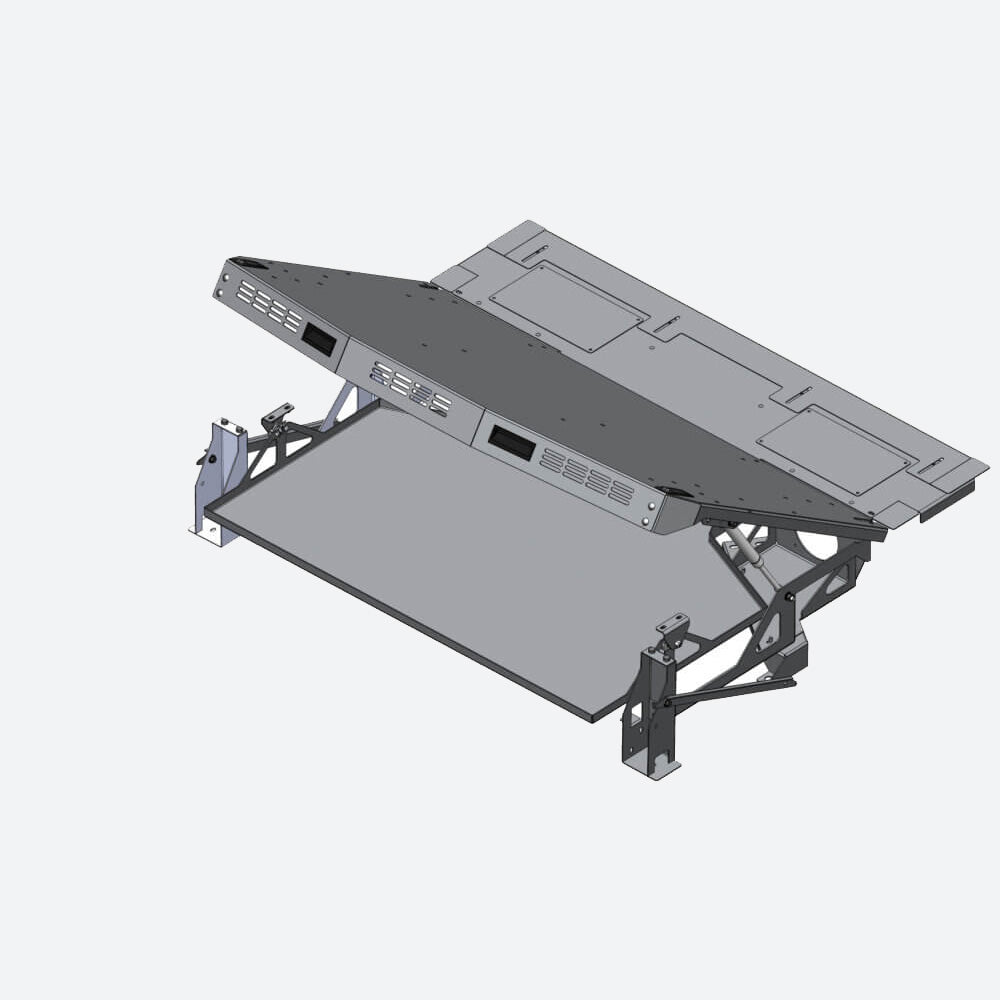

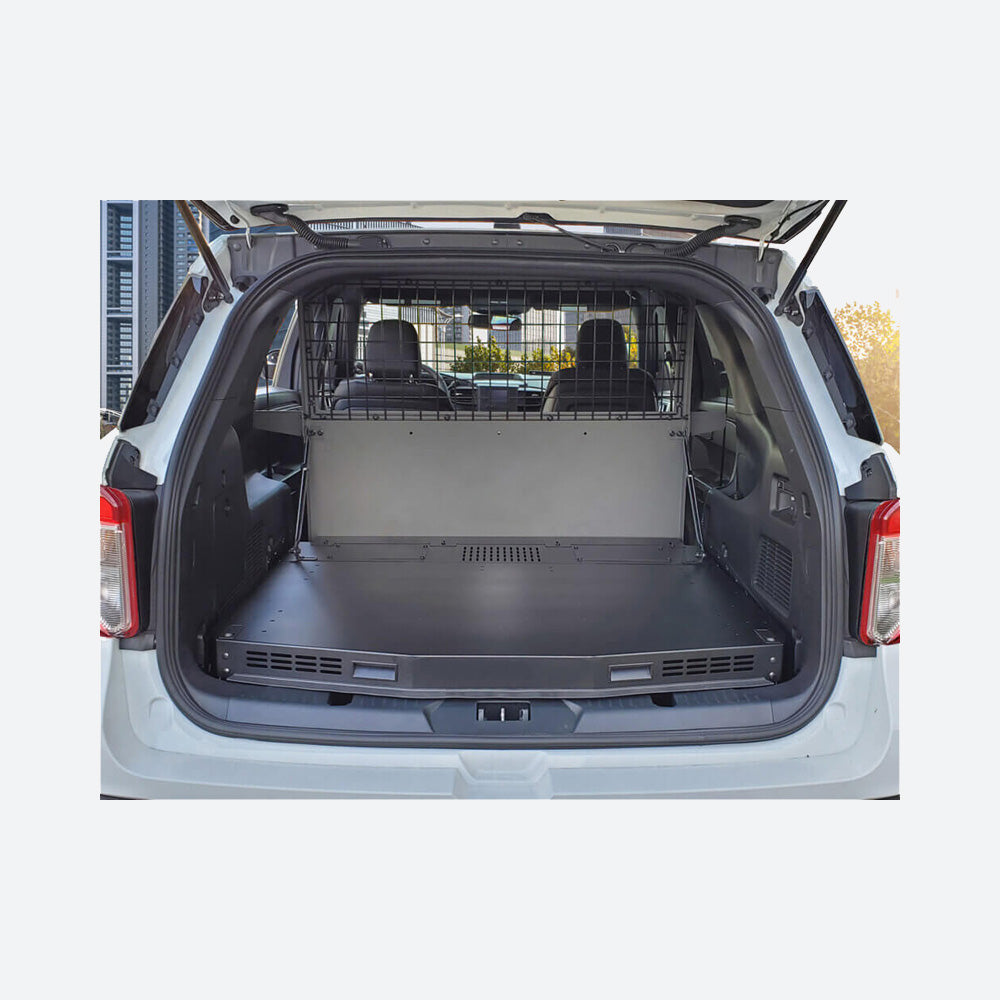

Havis Premium Package and Raised Fold-Up Equipment Tray and Cargo Plate with 200 lbs Lift Struts for 2020-2025 Ford Interceptor Utility

PKG-TTP-INUT-1201-4 Features

• Premium fold-up raised cargo plate & equipment tray fits 2020+ Ford Interceptor Utility
• Replaces OEM rear cargo floor/ spare tire cover and attaches without drilling
• Dual lockable latches provide quick access or protection of equipment mounted beneath
• Includes two (2) 200 lbs. gas lift struts, best for mounting storage or heavy equipment
• Equipment can be mounted on premium fold-up tray included, attaches to the underside of raised cargo plate above spare tire
• Allows access to spare tire
• Dual prop rods can be used to support mounting plate in open position
• Works with Havis Standard-length K9-F28-1, K9-F28-1-B, extended-length K9-F28-XL, K9-F28-XL-B or K9-F28-PT, K9-F28-PT-B inserts
• Only use Havis standard width SBX-1000 Series drawers
• Installer must drill and Bolt on equipment as desired
• Two (2) panels provide access to siren/radios and other equipment mounted in factory location under floor
• Ships motor freight
• Mounts to Interceptor Utility OE X-brace. does not work with retail Ford Explorer
• Cargo plate includes hole pattern for mounting Havis, inc. storage drawers
• Includes hole pattern and hardware to mount Havis SBX-1000 Series 40” wide modular storage drawers (If using two storage drawers they must be medium size)
• For vehicles with option 63V cargo storage vault, flush-mount locking latch kit (C-HK-364) is recommended to allow Havis trunk tray to open fully

PKG-TTP-INUT-1201-4 Specifications

Recommended for over 60 lbs of mounted equipment
80 lbs maximum weight rating for equipment that is bolted to the underside of platform (weight evenly distributed)
400 lbs weight carrying capacity for cargo stored on top of the platform when closed (will not hold 400 lbs. in open position)
Cargo plate measures - 46.5" wide x 31.2" deep (front to back)
Equipment mounting tray surface = 39.2" wide x 27.2" long
Depth between top of tray and bottom of raised cargo plate = 6" (5" under raised cargo plate reinforcement panel)
Includes two (2) spring latches to attach tray to raised cargo plate
Forward trim panel measures - 40" wide x 4.7: deep (front to back)
Forward trim panel adjusts to fit against Havis K9, or some manufacturers' partitions
14-gauge formed steel with a black medium texture powder coat finish
Accepts SBX-4004 fan
For use with Pro-gard rear partition, please order PROKIT-2 partition support strut relocation kit, adjustable forward filler panel works with some other manufacturers' rear partitions
For use with Setina partition, please order C-TTP-INUT-SETINA (sold separately) filler panel to close gap between Havis cargo plate and Setina partition
Gross weight: 120 lbs
