Gamber Johnson 2007-2017 Ford Expedition Base 7160-0046

Gamber Johnson Vehicle Base 7160-0046

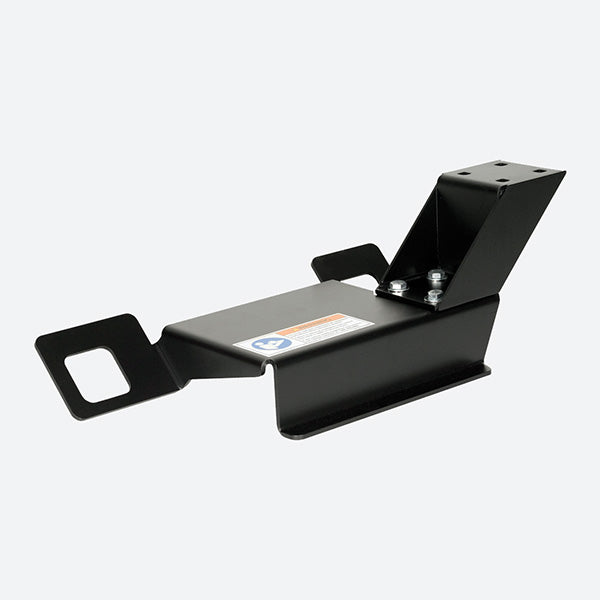

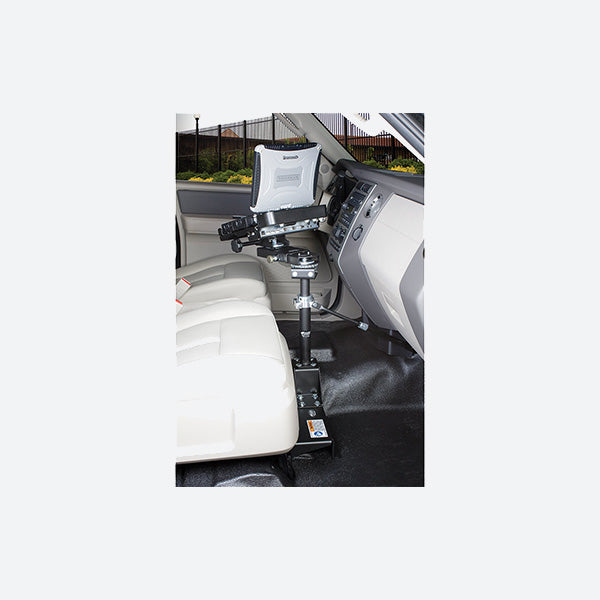

Built out of heavy duty steel, the Gamber Johnson 7160-0046 is compatible with the 2007-2017 Ford Expedition vehicle. Mounting without requiring drilling to the passenger side seat bolts, the 7160-0046 installs easily and includes a DS-STEP offset platform to help push the computer mount closer to the center of the vehicle. Once paired with the necessary lower tube, upper pole, motion attachment and computer dock or cradle, the 7160-0046 can provide a stable and secure computer mounting system. The 7160-0046 can be purchased as a stand alone piece of equipment or as a complete pedestal mounting kit under Gamber Johnson part number 7170-0129. Give our sales team a call at 816-388-0035 for any questions about the 7160-0046 or to receive a custom quote!

7160-0046 Features

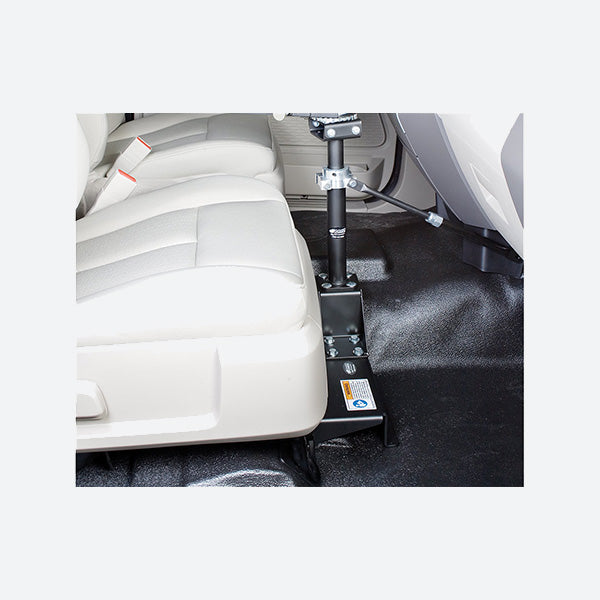

• Vehicle Base (7160-0046): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
• Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
• Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• 9" Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
• Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7160-0046 Specifications

Compatible Vehicle: 2007-2017 Ford Expedition
