Gamber Johnson Clam Shell w Small Plate 7160-0357

Gamber Johnson Full Mount 7160-0357

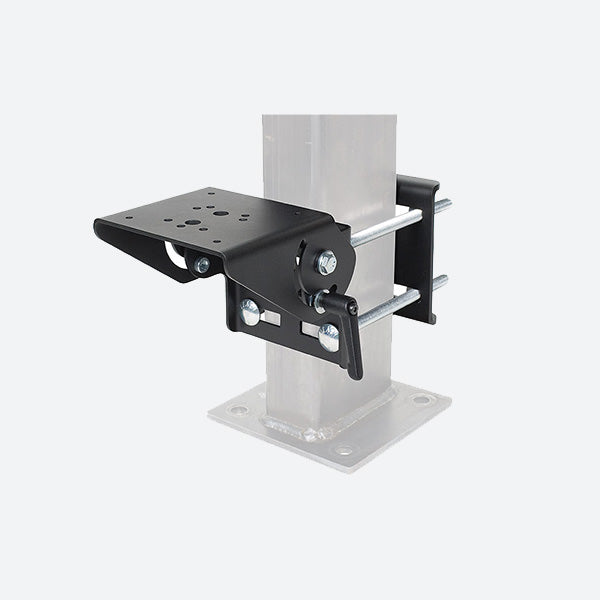

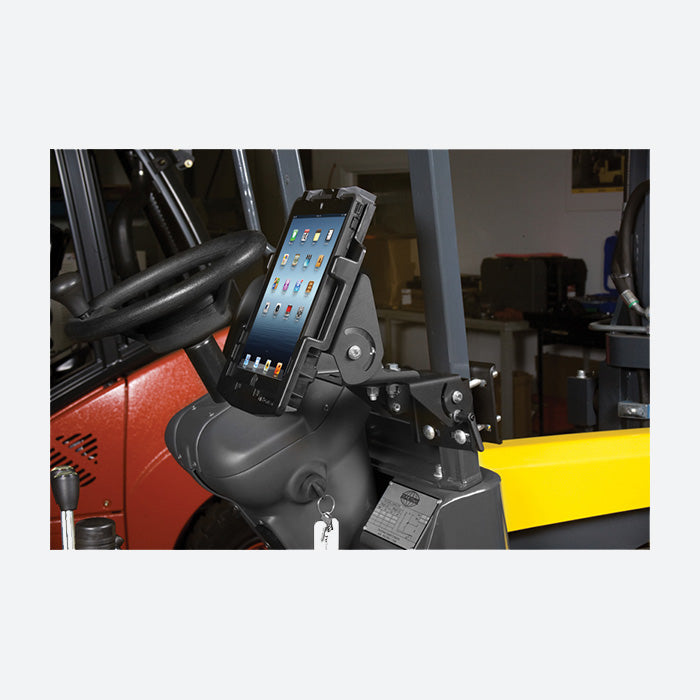

Able to mount easily to an overhead guard leg by clamping with bolts, the Gamber Johnson 7160-0357 Clam Shell with Small Plate can be a stand alone mount or be paired with other Clevis motion attachments and extending arms to add increased functionality. With AMPS, NEC and 75 mm VESA mounting patterns, the 7160-0357 is able to accommodate a wide variety of motion attachments, mounts and docks. The 7160-0357 fits to a forklift support brace 1.5 to 2.5 inches wide, if a larger plate is needed please consider the alternative Gamber Johnson piece 7160-0370 with a large plate. With a 160 up and down tilt, the included clevis would be perfect for a low profile tablet dock solution. Built out of heavy gauge and rugged materials, the 7160-0357 and most other Gamber Johnson parts are built to withstand the heaviest of abuse and are perfect for material handling work conditions. Let a sales rep help build the 7160-0357 into a complete computer mounting solution with a computer dock or cradle and other suggested pieces, give us a call at 816-388-0035

7160-0357 Features

• Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA
• Clam Shell can be tilted up or down for a total of 160°
• To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever
• A secondary bolt is included to lock the clam shell into a permanent position
• Plate sandwiches the overhead guard leg and allows user to position the device at the desired height position
• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance

7160-0357 Specifications

Weight

3.97 lbs. / 1.8 kg

Height

4.6 in / 11.7 cm

Width

6.26 in / 15.9 cm

Depth

5.1 in / 13.0 cm
