Gamber Johnson TOUGHBOOK FZ-G2 FZ-G1 Cradle (No electronics) 7160-0490-00
Gamber Johnson Cradle 7160-0490-00

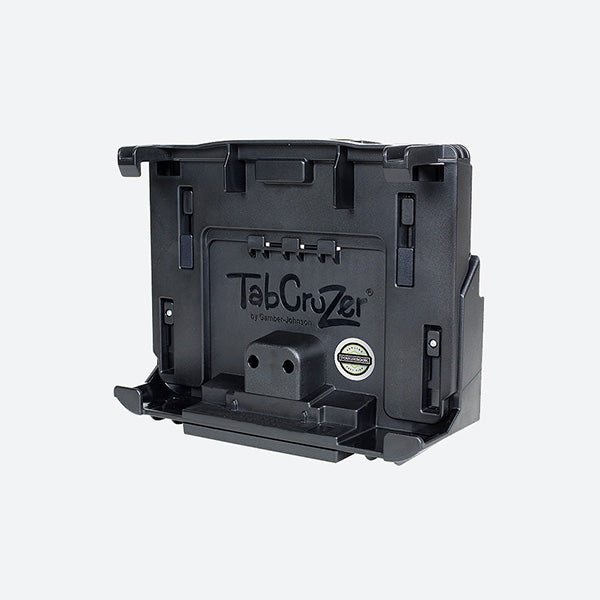

When the robust features of a dock aren't needed or out of budget, a vehicle cradle is a good alternative for safely securing a computer or laptop in a vehicle. The Gamber Johnson 7160-0490-00 cradle is a no frills budget friendly piece of equipment for mounting a Panasonic TOUGHBOOK FZ-G2 or Toughpad FZ-G1. While the 7160-0490-00 doesn't provide any port, antenna or power pass through, it can safely mount the FZ-G1 or FZ-G2 (without the keyboard) in a vehicle. If those features are required, please alternatively consider a vehicle dock such as Gamber Johnson 7160-0487-22. Providing a keyed locking latch for theft deterrence, the 7160-0490-00 has a VESA 75 mm mounting pattern making it compatible with most motion attachments. If you have any questions about the 7160-0490-00 or are interested in a quote for a complete in-vehicle computer solution including the FZ-G2 itself, give our sales team a call at 816-388-0035
7160-0490-00 Features

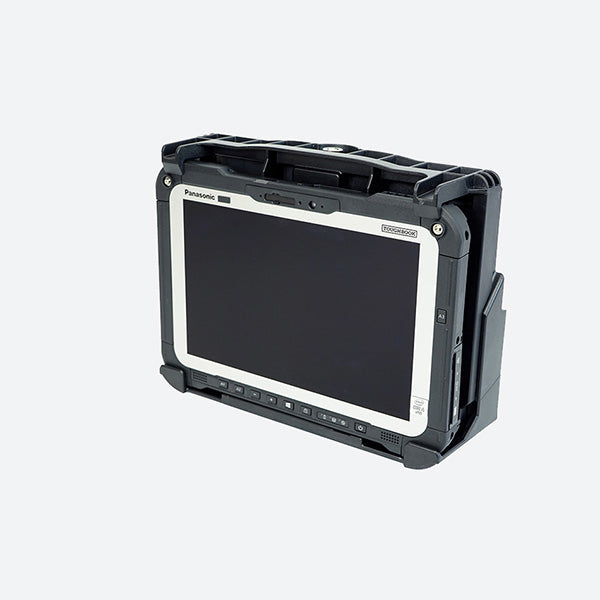

- Compatible with the Panasonic Toughpad FZ-G1 and TOUGHBOOK G2 tablet computers with small or large bumper guards
- Cradle accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.

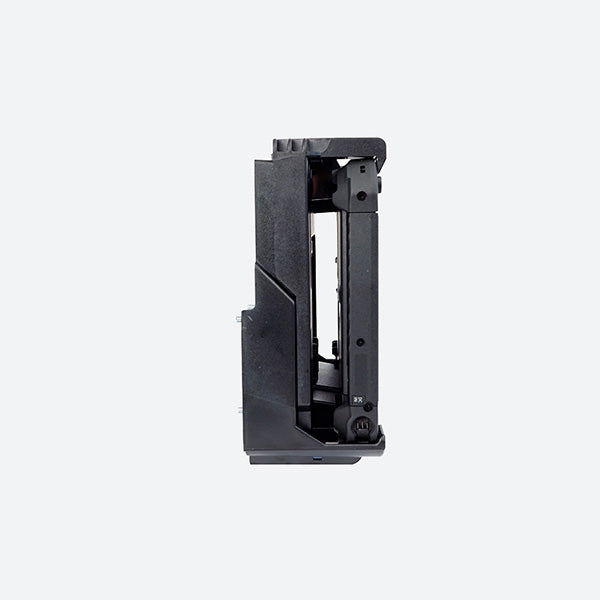

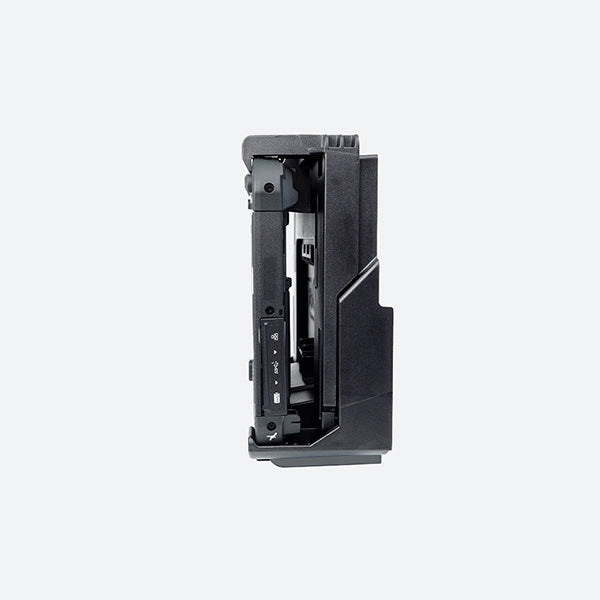

- Access to all tablet control buttons and ports while tablet is docked
- Easy docking and release, Insert computer into the cradle, push top of cradle down and engage lock to dock computer
- Keyed lock for theft deterrence

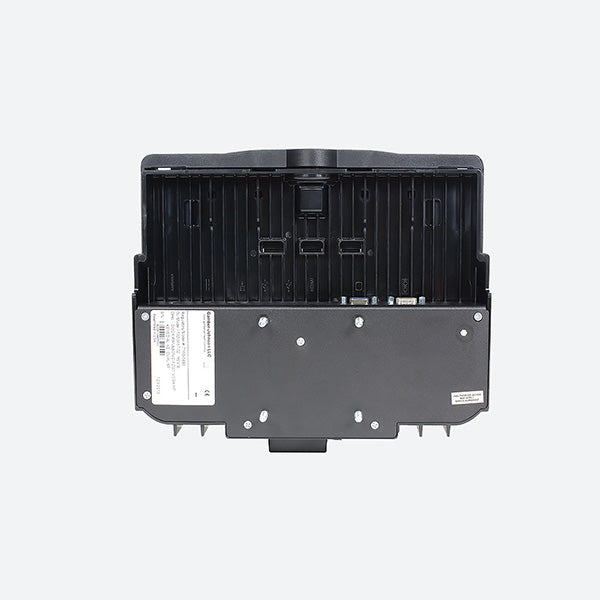

- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
Kit Includes:
- Panasonic FZ-G1 / G2 Cradle
- Mounting Hardware
- Installation Instructions
7160-0490-00 Specifications
Weight
2.0 lbs / 0.91 kg
Height
9.14 in / 23.22 cm
Width
11.22 in / 28.5 cm
Depth
3.8 in / 9.65 cm
Warranty:
- 3-year Limited Lifetime Warranty
- Extended Warranty/Gamber Guard Options Available
Power Supply:
Power adapter is not included, please use one of the following:
- LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
- LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
- LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
- LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
- LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)
Testing Specifications:
- TOUGHBOOK Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE, C-TICK, UKCA
- SAE J1455 Shock Crash Hazard Test
Antenna Pass-through:
- No RF
