Gamber Johnson Panasonic FZ-G1 THIN Full Port Replication Dock w No RF 7160-0595-00

Gamber Johnson Dock 7160-0595-00

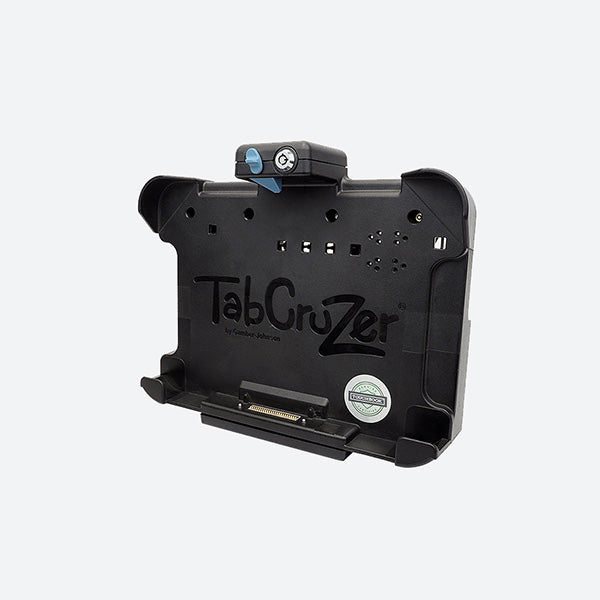

The Gamber Johnson FZ-G1 7160-0595-00 dock comes with advanced port replication,  power pass through but does not come with any RF pass through. Featuring a VESA 75mm mounting pattern, the 7160-0595-00 can mount to any Gamber Johnson motion attachment. The 7160-0595-00 features full port replication which includes ethernet, HDMI, serial, USB 3.0 and VGA ports. If external antennas are a required feature please consider the dual RF Gamber Johnson FZ-G1 dock part number 7160-0595-02.  If you need assistance with the 7160-0595-00 or would like help customizing it to be a complete mounting solution or even a quote for the TOUGHBOOK itself just email your requirements to sales@ruggedordie.com and we will respond within one business day!

7160-0595-00 Features

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small bumper guards
  • Panasonic certified electronics
  • Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
  • Upward-facing I/O ports, integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence

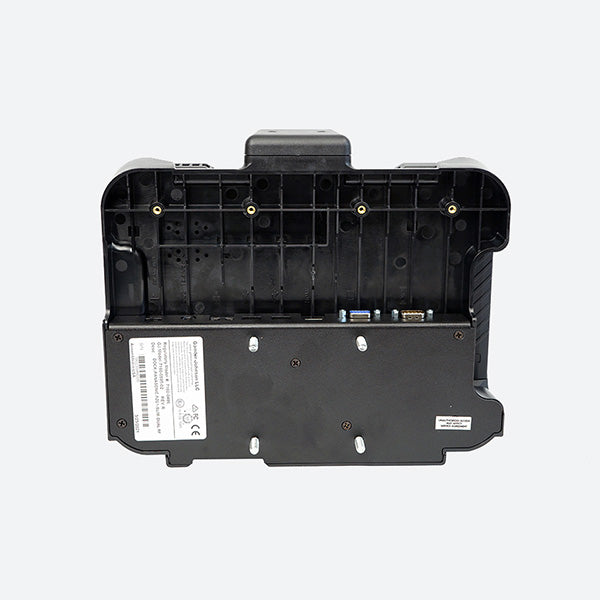

  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

Kit Includes:

  • Panasonic FZ-G1 Docking Station
  • Mounting Hardware
  • Installation Instructions

7160-0595-00 Specifications

Weight

2.5 lbs. / 1.13 kg

Height

9.33 in / 23.7 cm

Width

11.22 in / 28.5 cm

Depth

2.56 in / 6.5 cm

Port Replicators:

Panasonic certified electronics (1)
Ethernet - RJ45 (1)
Serial - D-sub 9-pin (1)
VGA - D-sub 9 pin (1)
HDMI - 19 pin (2)
USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch

Antenna Pass-through:

No RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

$520.88 USD
$520.88 USD
Shipping calculated at checkout.
