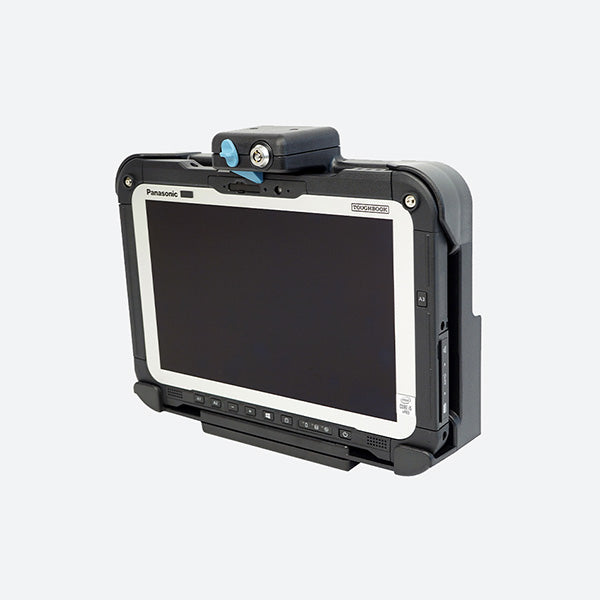

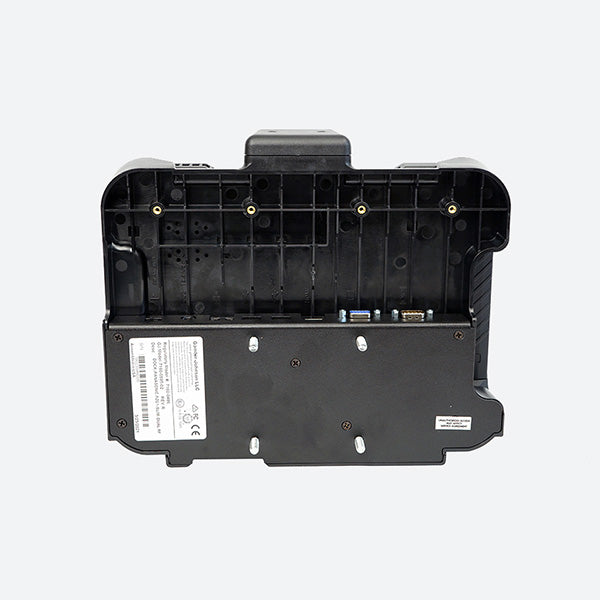

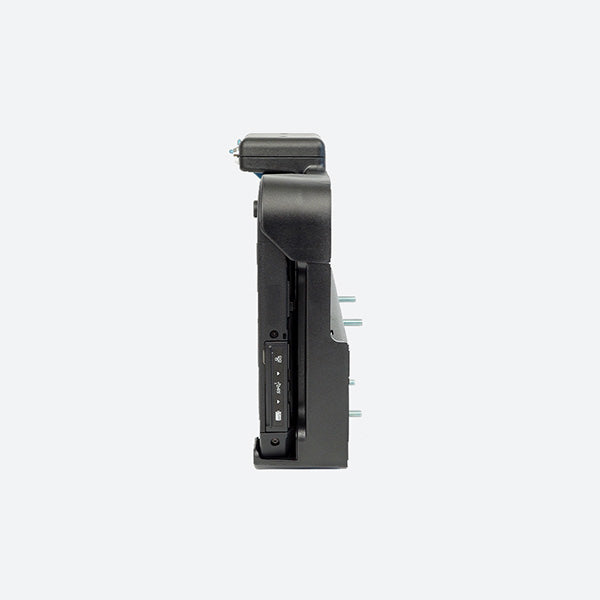

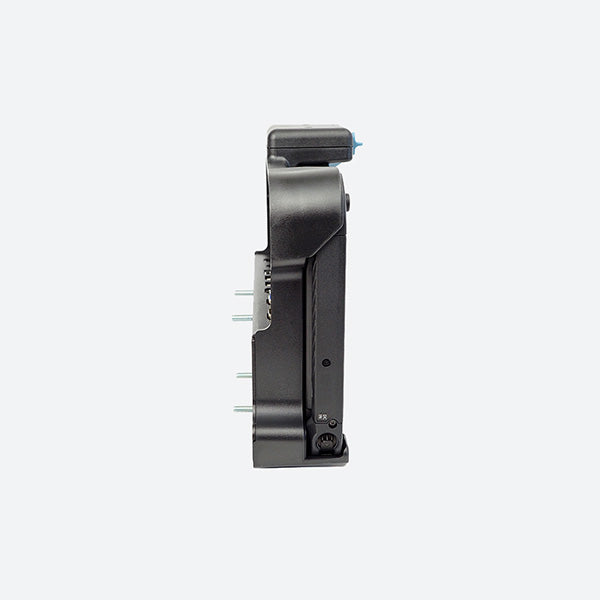

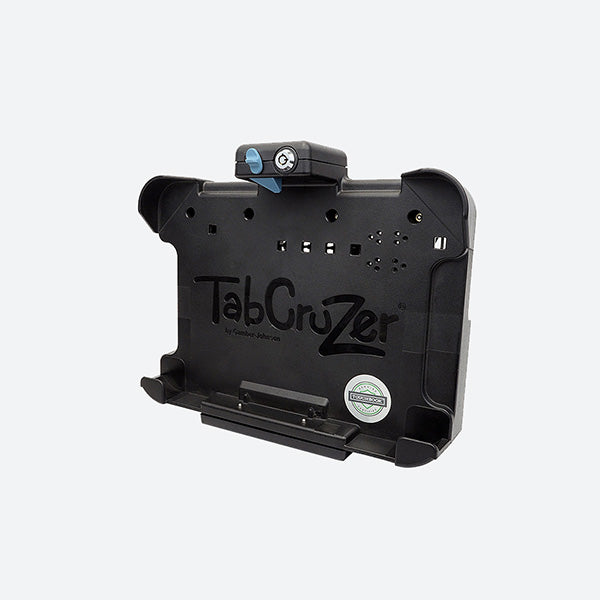

Gamber Johnson Panasonic FZ-G1 THIN Cradle 7160-0759-00

Gamber Johnson Cradle 7160-0759-00

As a no frills solution, the Gamber Johnson 7160-0759-00 is a budget friendly way to mount an FZ-G1 Panasonic TOUGHBOOK. While the 7160-0759-00 doesn't have advanced features like port or power replication or antenna pass through like a vehicle dock would, it is significantly cheaper and can help provide an FZ-G1 mounting solution to a restrictive budget. If advanced features are needed, please alternatively consider a Gamber Johnson FZ-G1 vehicle dock such as part number 7160-0595-02. Made out of rugged materials, the 7160-0759-00 is a durable and dependable way to safely secure the FZ-G1. Featuring a VESA 75mm mounting pattern, the 7160-0759-00 can mount to any Gamber Johnson motion attachment. If you need assistance with the 7160-0759-00 or would like help customizing it to be a complete mounting solution or even a quote for the TOUGHBOOK itself just email your requirements to sales@ruggedordie.com and we will respond within one business day!

7160-0759-00 Features

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computer with small bumper guards
  • Cradle is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the cradle, push top of cradle down and engage lock to dock computer
  • Keyed lock for theft deterrence VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

Kit Includes:

  • Panasonic FZ-G1 Cradle
  • Mounting Hardware
  • Installation Instructions

7160-0759-00 Specifications

Weight

2.4 lbs. / 1.08 kg

Height

9.33" / 23.7 cm

Width

11.22" / 28.5 cm

Depth

2.56" / 6.5 cm

Power Supply:

Power adapter is not included, please use one of the following:

  • LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
  • LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
  • LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
  • LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
  • LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

Testing Specifications:

  • TOUGHBOOK Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

Antenna Pass-through:

  • No RF
