Gamber Johnson Getac S410 Dock No RF 7160-0790-00

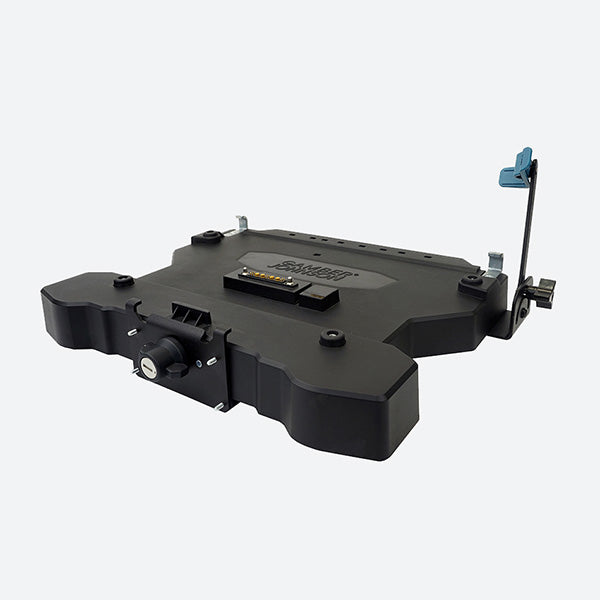

Gamber Johnson Dock 7160-0790-00

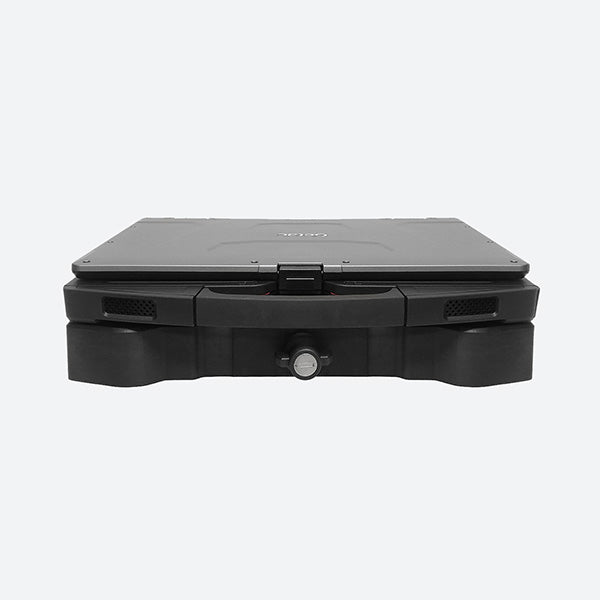

Designed for the rugged Getac S410 laptop, the Gamber Johnson 7160-0790-00 docking station does not have any RF pass through but does feature port and power replication. With interface ports including ethernet, HDMI, serial, USB 2.0, USB 3.0 and VGA the dock can connect peripherals and other devices without causing wear and tear on the S410 ports themselves. The included screen support in the 7160-0790-00 kit helps reduce vibration on the S410 laptop display which improves the user experience and limits screen damage. This S410 dock doesn't include RF pass through so would not be able to connect external antennas, if that feature is needed please consider the S410 Tri RF dock which is Gamber Johnson part number 7160-0790-03 Like any vehicle dock, the S410 dock requires mounting equipment to be turned into a complete vehicle mounting solution, if you email our sales team at sales@ruggedordie.com we would be happy to assemble a custom mounting solution for your vehicle! Rugged or Die is also pleased to sell all current Getac products, browse S410 laptops available to order here!

7160-0790-00 Features

• Small footprint designed to maximize available space
• Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system Rear hooks and guide pins ensure proper alignment and docking connectivity
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Plate draws back into docking station when the computer is docked
• Docking station designed to accommodate optional VGA attachments
• Can be used with Gamber-Johnson motion attachments with the VESA 75 mm hole pattern
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Screen support is included with the dock
• Optional power supply bracket (7120-0736) to attach Getac power supply to the bottom of the dock (sold separately)
• External power supply sold separately

7160-0790-00 Specifications

Weight

4.47 lbs. / 2.03 kg

Height

12.39 in / 31.47 cm

Width

13.84 in / 35.15 cm

Depth

2.90 in / 7.37 cm

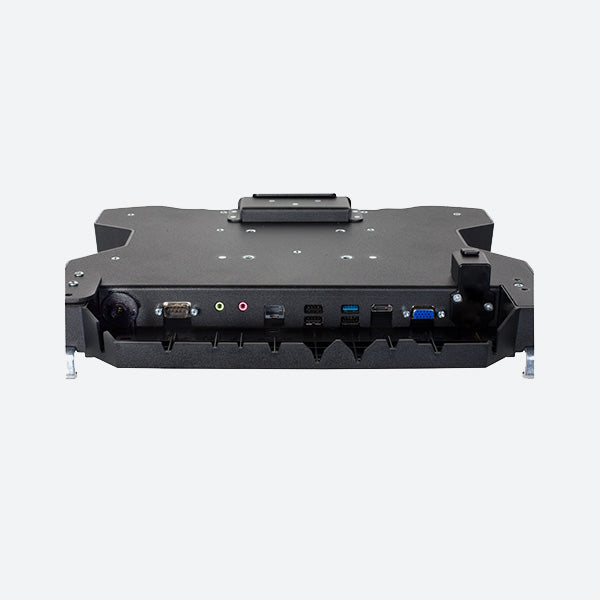

Port Replicators:

Ethernet - RJ45
USB 3.0 9 Pin (1)
USB 2.0 4 Pin (3)
HDMI - 19 Pin
Serial - D-sub 9 Pin
Input voltage - 19 VDC
VGA - D-sub 15 Pin
Microphone/speaker

Antenna Pass-through:

No RF

Power Supply:

Not included - must use external Getac 120W auto power adapter (7300-0471)
