Gamber Johnson Tablet Keyboard Mount 7160-0799

Gamber Johnson Keyboard Mount 7160-0799

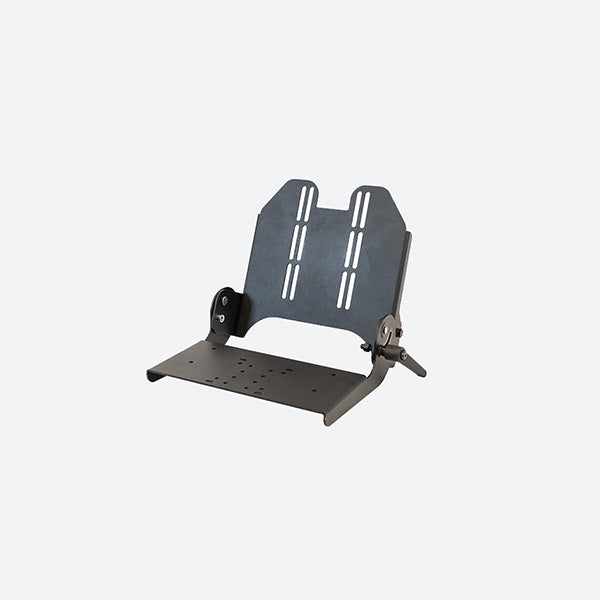

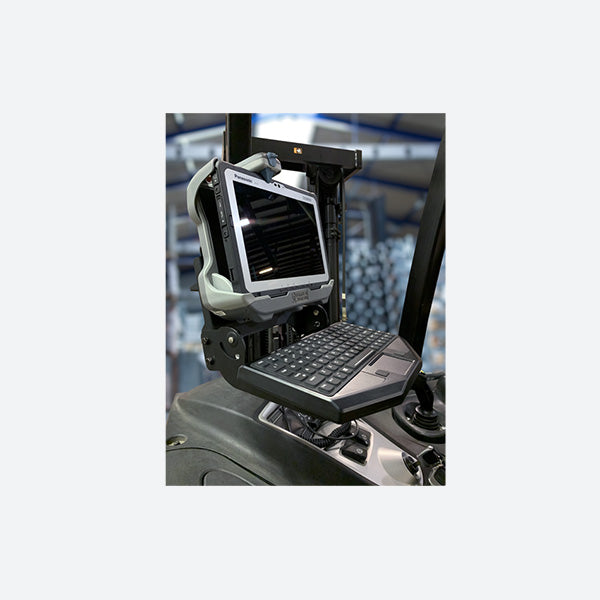

Installing between a rugged tablet dock or cradle and the motion attachment, the Gamber Johnson 7160-0799 is a a great way to add a peripheral keyboard to a mounted equipment solution. Featuring slotted mounting holes, the 7160-0799 is compatible with VESA 75mm and can adjust to the user preferred keyboard keyboard height. With a tilting tray that has a number of different mounting patterns included, the 7160-0799 can accommodate any virtually any keyboard or keyboard quick release platform. While the 7160-0799 keyboard tray is versatile solution, if a taller more extended keyboard mount is required please consider the Gamber Johnson 7160-0799-01 which comes with a tall back plate. A Rugged or Die sales team member can help provide a custom quote for the 7160-0799 or a complete equipment solution, send your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-0799 Features

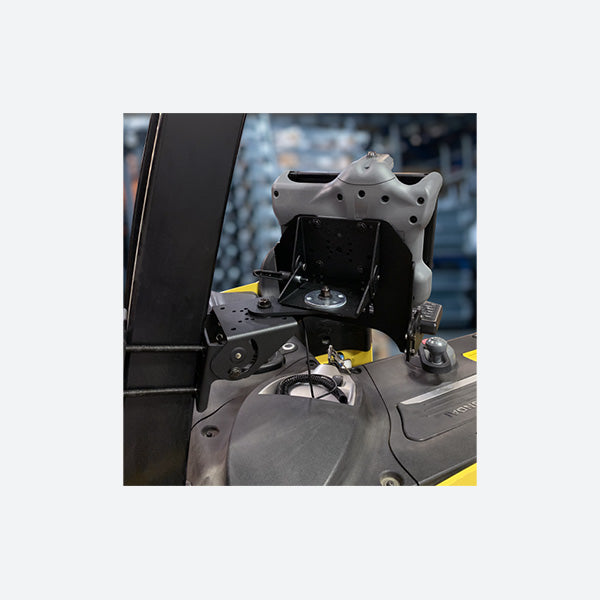

• Attaches to the back of any Gamber-Johnson tablet docking stations and cradles using the VESA 75mm pattern
• Tension handle secures the keyboard to the tray and allows the keyboard to be rotated to an ergonomic position and locked into place
• Keyboard can be tilted down 30° for working or 60° vertically when stowed, adjustable handle secures keyboard at the desired position
• Heavy gauge steel and aluminum construction for long-term durability
• Black powder coat finish for maximum corrosion resistance
• Four (4) mounting hole patterns to attach keyboard:
• AMPS (30mm x 38mm) - 2 mounting locations
• 2.5 x 2.5 - 2 mounting locations
• VESA 75mm
• 2 x 7 Honeywell

7160-0799 Specifications

Weight

Weight: 4.25 lbs / 1.93 kg

Height

Height: 6.1 in / 15.5 cm

Width

Width: 5.8 in / 14.7 cm

Depth

Depth: 10.0 in / 25.4 cm
