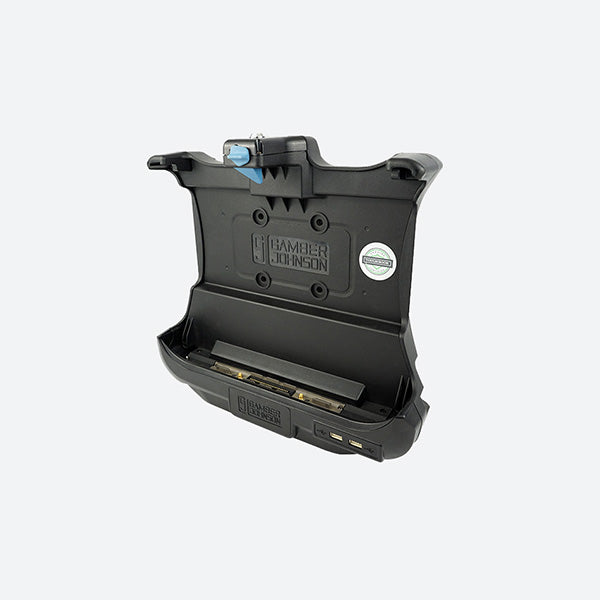

Gamber Johnson TOUGHBOOK 33 Tablet Lite Port Replication Dock w No RF 7160-0907-06

Gamber Johnson Dock 7160-0907-06

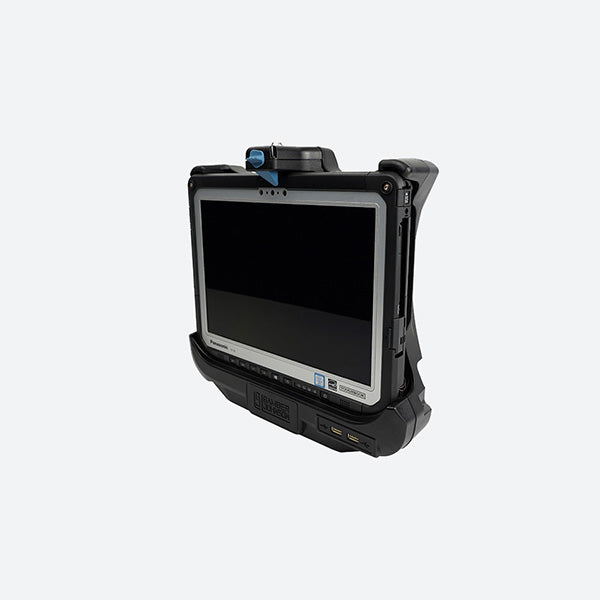

The Gamber Johnson 7160-0907-06 docking station is compatible with the Panasonic TOUGHBOOK CF-33 while in tablet mode (without optional keyboard attached.) The 7160-0907-06 features lite port replication and is compatible with the CF-33 with a handstrap or optional long life batteries installed. The lite port replication on the dock includes many ports such as ethernet, USB 2.0, USB 3.0 and serial RS232 but does not include HDMI or VGA ports. This dock does not include any RF pass through so cannot accommodate external antennas, that feature is suggested for units that include 4G LTE and or GPS, especially in rural low signal areas. If dual RF pass through is desired, please consider alternatively the dual rf Gamber Johnson Dock part number 7160-0907-07. Rugged or Die sales reps are experts in both vehicle mounting and docking as well as rugged computers, we would be happy to help build the 7160-0907-06 dock into a complete in-vehicle solution and can provide a quote for the mounting equipment as well as the CF-33 TOUGHBOOK itself! Send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0907-06 Features

• Compatible with Panasonic CF-33 Toughpad.
• VESA 75mm hole pattern.
• Can be mounted in horizontal or vertical position.
• Internal/protected circuit board protects against dirt and dust.
• Floating docking connector for reliable docking connection.
• Optional lock (keyed alike) for theft deterrence.
• Optional cradle version (no ports).
• Accommodates either a tablet's hand strap or an additional battery pack.
• Rounded edges to enhance personal safety.
• Rugged construction for long-term durability.
• Can be used with Lind 120W automobile power supply (7300-0462) or Lind 120 W bare wire leads power supply (7300-0461).

7160-0907-06 Specifications

Weight

4.15 lbs / 1.88 kg

Height

12.5” / 31.75 cm

Width

13.25” / 33.65 cm

Depth

4.5” / 11.43 cm

Port Replicators:

Antenna switch LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin

Antenna Pass-through:

No RF

Power Supply:

Not included - Can be used with Lind 120W automobile power supply (7300-0462) or Lind 120W bare wire leads power supply (7300-0461)
