Gamber Johnson Getac K120 Laptop Dock NO RF 7160-1082-00

Gamber Johnson Dock 7160-1082-00

Designed for the Getac K120 rugged computer with the optional keyboard installed, the Gamber Johnson 7160-1082-00 features full port replication and power pass through but comes with NO RF pass through. Full port replication on the 7160-1082-00 includes HDMI, USB, Ethernet, Serial and VGA ports allowing a user to connect peripherals, cables, displays, USB sticks and more to the dock and save the K120 ports from wear and tear or damage. With no RF pass through, external antennas cannot be connected to the 7160-1082-00, if that feature is desired please consider the Dual RF Gamber Johnson K120 dock part number 7160-1082-03. If you would like a quote for the 7160-1082-00 or a complete solution including the Getac K120 rugged tablet itself please send your requirements to sales@ruggedordie.com and our sales team will respond within 1 business day.

7160-1082-00 Features

• Compatible with the Getac K120 computer with keyboard
• Docking Station design accommodates MSR and rotating hand strap (sold separately)
• Rear corner release button, easily remove the computer with the push of a button
• Access to all computer control buttons and ports while the computer is docked
• Forward-facing I/O ports, integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• Optional lock (keyed alike) for theft deterrence. When the computer is closed and screen is latched, the lock will secure the keyboard and computer
• Rounded edges to enhance personal safety
• Gamber-Johnson rugged construction and reliability
• VESA 75mm mounting pattern


7160-1082-00 Specifications

Weight

4.60 lbs. / 2.08 kg

Height

2.5" / 6.5 cm

Width

11.6" / 29.5 cm

Depth

12.1" / 30.7 cm

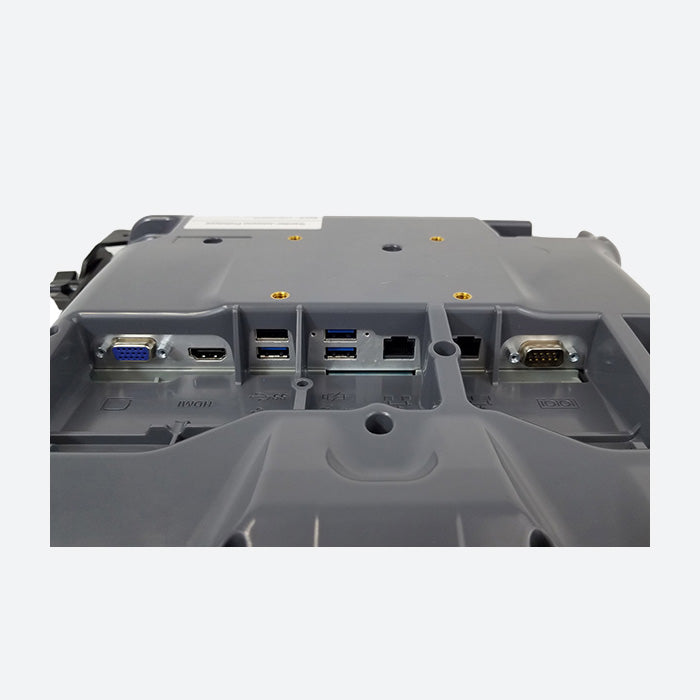

Port Replicators:

Ethernet (2) - RJ45
USB 2.0 (2) - 4 pin forward-facing, fast-charging (1500 mA)
USB 2.0 (1) - 4 pin rear-facing (500 mA)
USB 3.0 (1) - 9 pin fast-charging (1500 mA)
USB 3.0 (2) - 9 pin (900 mA)
VGA (1) - D-sub 9 pin
HDMI (1) - 19 pin
RS232 Serial (1)
AMP Power Input - 19 Vdc

Antenna Pass-through:

No RF
