Gamber Johnson Getac K120 Tablet Dock NO RF 7160-1084-00

Gamber Johnson Dock 7160-1084-00

The Gamber Johnson 7160-1084-00 docking station designed for the Getac K120 Tablet features power and port replication but NO RF pass through. Ports on a Gamber Johnson dock allow a user to interface with the K120 with peripherals, USB sticks, display cables etc. without causing wear and tear or damage to the ports on the tablet itself. Interface options on the 7160-1084-00 include Ethernet, USB 2.0, USB 3.0, VGA, HDMI and RS232 serial ports. The 7160-1084-00 does not feature RF pass through (the ability to connect external antennas), if this feature is required please consider the Gamber Johnson Tri RF dock 7160-1084-03. The 7160-1084-00 dock is only compatible with the Getac K120 in tablet only mode without the optional keyboard attached. If you have questions or are interested in a quote for the 7160-1084-00 or a complete solution including the Getac K120 rugged tablet itself please send your requirements to sales@ruggedordie.com and our sales team will respond within 1 business day.

7160-1084-00 Features

• Docking station design accommodates tablet's rotating hand strap (sold separately)
• Easy to use one-handed operation:

                 -Insert bottom of computer into the docking station, push top of computer against latch button until latch engages

                 -To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station

• Access to all tablet control buttons and ports while tablet is docked
• Optional keyed lock for theft deterrence
• Upward-facing I/O ports, integrated cable strain relief and cable management system
• Vesa 75mm mounting pattern
• Rounded edges to enhance personal safety

7160-1084-00 Specifications

Weight

3.2 lbs. / 1.45 kg

Height

11.6" / 29.5 cm

Width

13.1" / 33.5 cm

Depth

4.3" / 11.1 cm

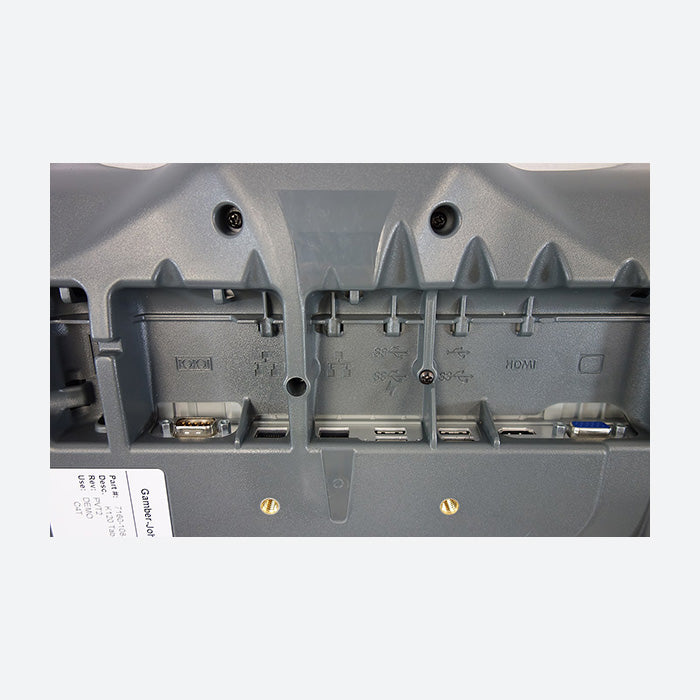

Port Replicators:

Ethernet (2) - RJ45
USB 2.0 (2) - 4 pin forward-facing, fast-charging (1500 mA)
USB 2.0 (1) - 4 pin rear-facing (500 mA)
USB 3.0 (1) - 9 pin fast-charging (1500 mA)
USB 3.0 (2) - 9 pin (900 mA)
VGA (1) - D-sub 9 pin
HDMI (1) - 19 pin
RS232 Serial (1)
Power Input - 19 Vdc

Antenna Pass-through:

No RF
