Gamber-Johnson

Gamber Johnson Getac A140 Tablet Cradle NO RF 7160-1247-00

Gamber Johnson Cradle 7160-1247-00

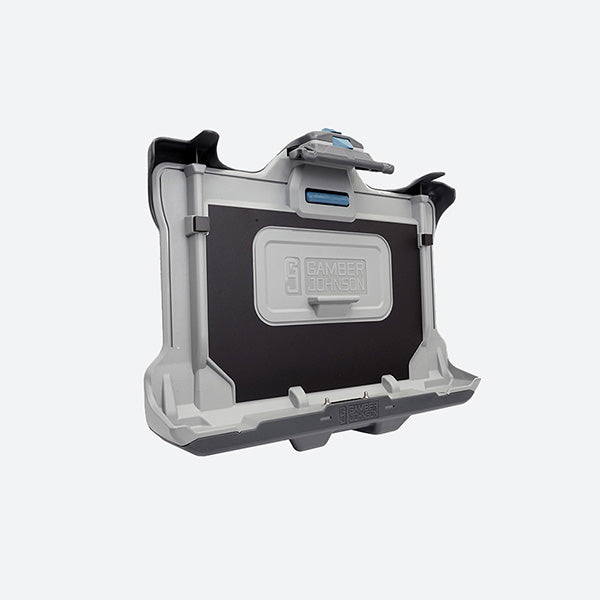

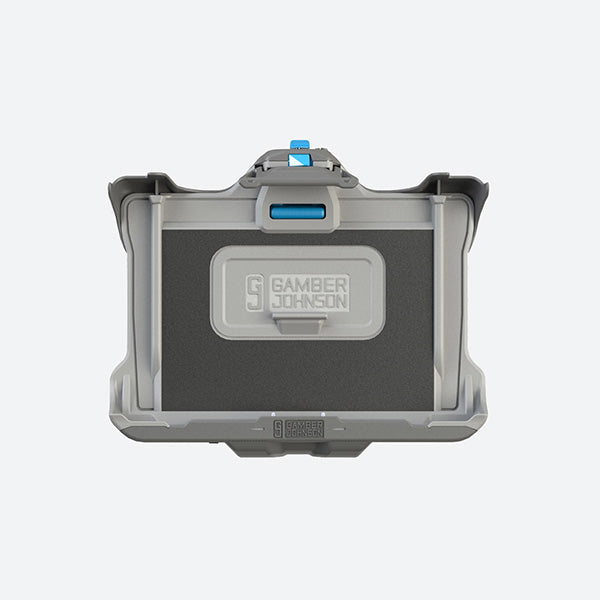

Designed only to securely mount the Getac A140 rugged tablet, the Gamber Johnson 7160-1247-00 is a good mounting solution for lower budgets that can't accommodate the higher price tag of a vehicle dock. While the 7160-1247-00 cradle cannot provide power or port replication, it does include a keyed locking latch for theft security and is a rugged and durable way to safely mount the A140. While the Getac tablet is seated in the cradle, a user still has full access to all controls, buttons, ports and camera on the tablet. A power supply can be plugged directly into the A140 tablet while it is locked into the cradle. If port replication and or power pass through are required features, please consider an A140 dock instead of a cradle (such as Gamber Johnson part number 7160-1246-03 for a dock with Tri RF or part number 7160-1246-00 for a dock with NO RF.) The 7160-1247-00 features a VESA 75mm mounting pattern which can fit to most Gamber Johnson motion attachments. We would be happy to help provide a list of optimal mounting equipment for the 7160-1247-00 to turn it into a complete solution or even provide a free quote for the Getac A140 tablet itself! Email the Rugged or Die sales team at: sales@ruggedordie.com

7160-1247-00 Features

  • Designed for the Getac A140 tablet computer

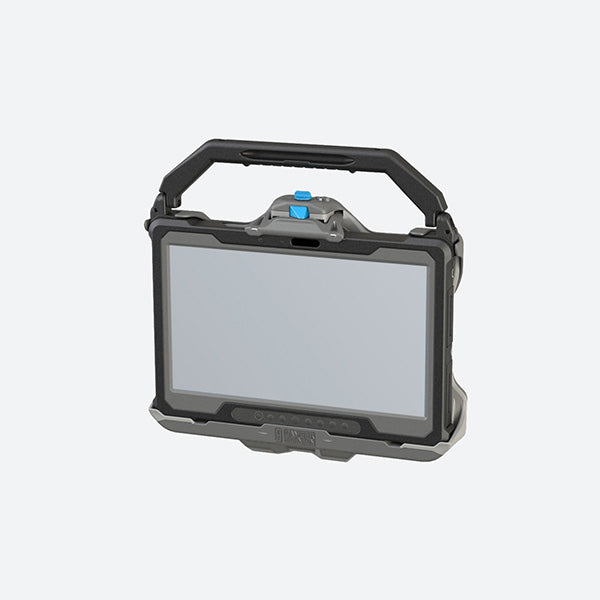

  • Cradle design accommodates tablet's built-in rubber hand strap, stylus, and optional multi-function hard handle (sold separately)
  • Access to all tablet control buttons, ports, smart card reader and front camera while tablet is cradled
  • Easy to use one-handed operation:

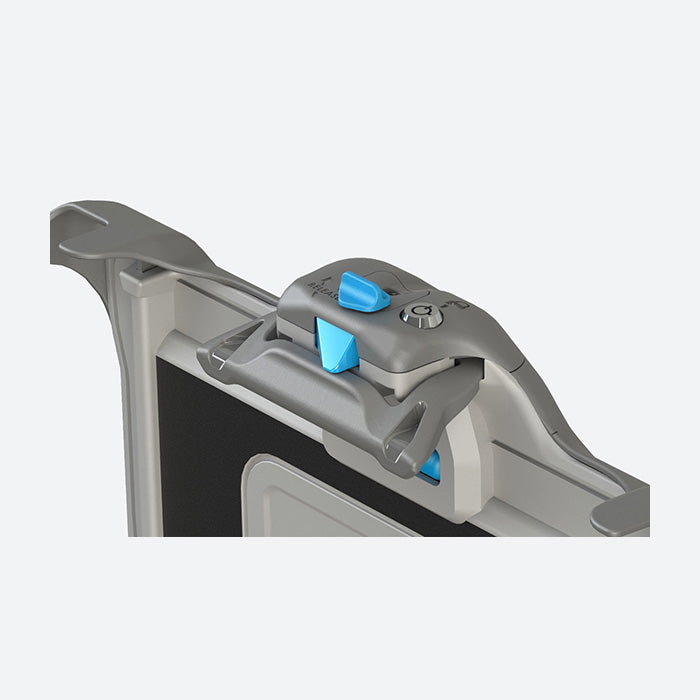

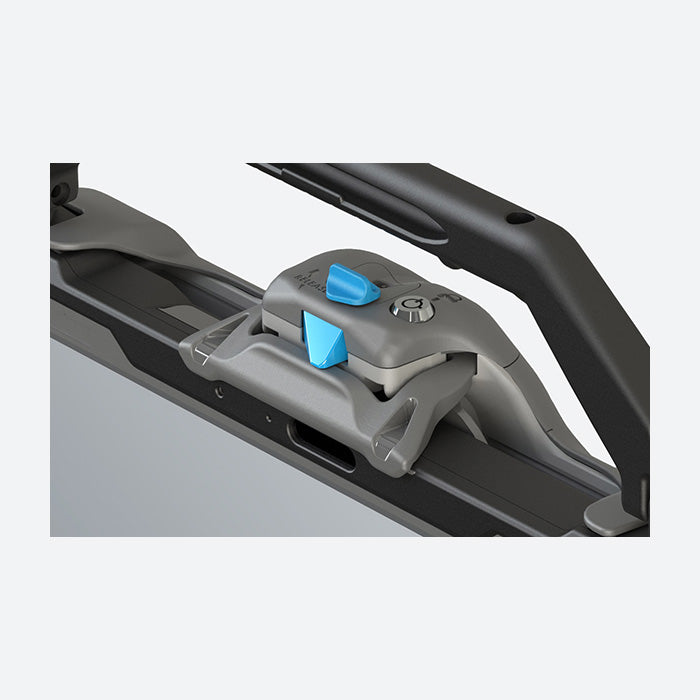

  • Insert bottom of computer into the cradle, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle
  • Optional keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Composite/aluminum design for reduced weight and durability

7160-1247-00 Specifications

Weight

3.85 lbs / 1.74 kg

Height

12.59 in / 31.9 cm

Width

15.18 in / 38.5 cm

Depth

3.31 in / 8.4 cm

Power Supply:

NOT included - must use one of the following external power supplies:

  • Lind 120W Auto Adapter for Getac (17057)
  • Lind 12-32V Material Handling Isolated Power Adapter for Getac (7300-0413)
  • Lind 20-60V Material Handling Isolated Power Adapter for Getac (7300-0412)
  • Lind 80V Material Handling Isolated Power Adapter for Getac (7300-0416)

Testing Specifications:

  • Getac Certified
  • Vibration Tested: MIL-STD 810G Operational/Non-Operational
  • Shock Crash Hazard: SAE J1455; Mechanical Shock: 40g
  • Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
  • Environmental: Thermal Shock, High/Low Temperature Operational & Storage
  • FCC, CE, RoHS Certified

Antenna Pass-through:

  • No RF
$347.05 USD
$347.05 USD
Shipping calculated at checkout.
