Gamber Johnson Zirkona 4 Diamond Plate w Large Joiner and AMPS/NEC Plate 7160-1261

Gamber Johnson Full Mount 7160-1261

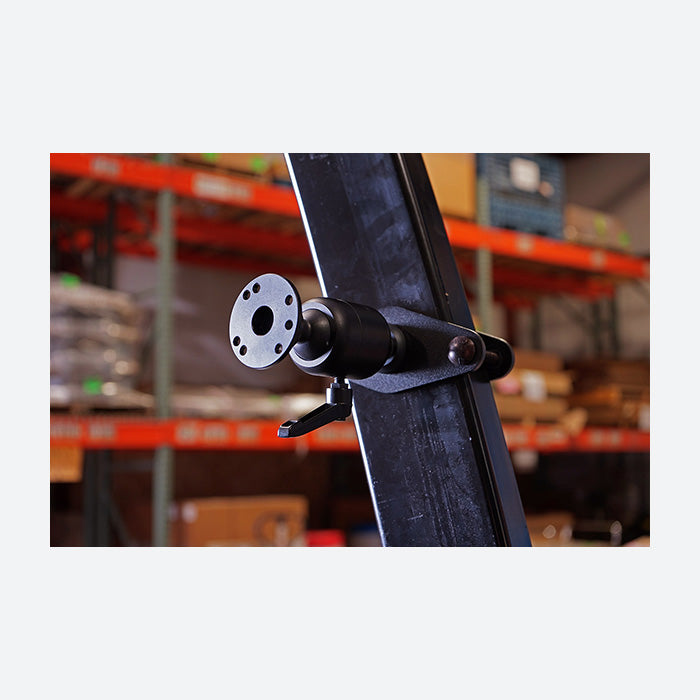

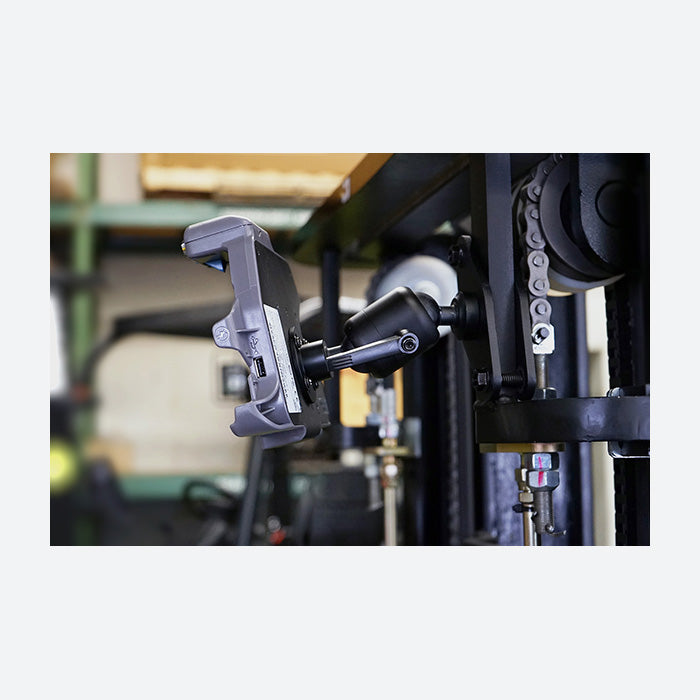

Providing a full mounting solution for a small device or peripheral, the Gamber Johnson 7160-1261 is a versatile and low profile mount that can accommodate up to 8 lbs. of weight in a vibrating or moving environment. Ideal for mounting a small tablet dock or cradle, a scanner, printer or other device in a material handling or warehouse management environment, the 7160-1261 comes with a 4 inch diamond base (Gamber Johnson part number 7160-1235) which can install the mount onto an overhead guard bar or leg. With a large Zirkona Joiner, the 7160-1261 can pivot and angle the device to the optimal viewing position. Featuring an AMPs mounting plate, the 7160-1261 can secure any dock, cradle or device with the same mounting pattern. If a VESA 75mm mounting plate is required, please consider the alternate Gamber Johnson part number 7160-1261-01. If you are needing help completing your forklift or work truck equipment solution, Rugged or Die sells the entire Gamber Johnson catalog as well as much of the required electronic equipment such as rugged computers and tablets, keyboards, Zebra and Brother printers, scanners and more! Email your requirements to sales@ruggedordie.com and we will respond within one business day!

7160-1261 Features

• Mounts to various overhead guard leg profiles such as rectangular and roll formed
• Includes large joiner with AMPS and NEC mounting hole patterns to mount countless docks, cradles and other peripherals
• Small form factor to secure light weight devices up to 8 lbs in a material handling shock environment
• Easy to install mounting solution with no drilling required and ample adjustability to accommodate operator comfort and ease of use

LARGE JOINER MAXIMUM WEIGHT CAPACITY

• Vibration environment - Joiner holds up to 11 lbs / 5kg
• Static environment - Joiner hold up to 55 lbs / 25kg
• Warning: Extension tube will lower the overal payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.

7160-1261 Specifications

Weight

2.70 lbs / 1.22 kg

Height

2.5 in / 6.35 cm

Width

5.68 in / 14.43 cm

Depth

5.75 in / 14.61 cm
