Gamber-Johnson

Gamber Johnson TOUGHBOOK CF-20 and FZ-G2 Cradle 7160-1265-10

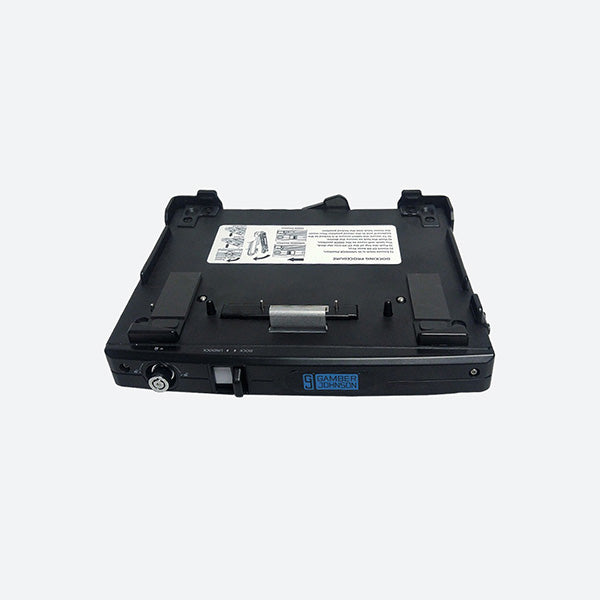

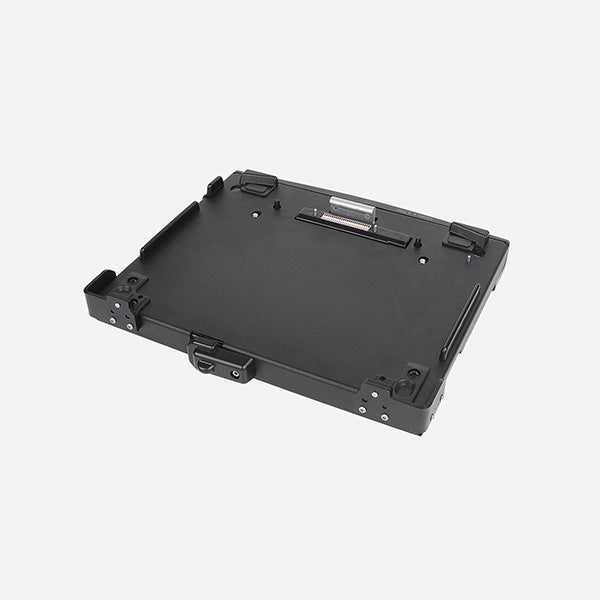

Gamber Johnson Cradle 7160-1265-10

Designed specifically for the Panasonic TOUGHBOOK FZ-G2 or CF-20, the 7160-1265-10 functions with the 2-in-1 laptop with keyboard attached. Built simply to secure the TOUGHBOOK, the 7160-1265-10 cradle does not provide power, port or antenna pass through. If those types of features are needed, please consider a computer dock instead of a cradle, such as Gamber Johnson Dual RF FZ-G2 Dock part number 7160-1265-22. The Rugged or Die sales team can help assemble a complete vehicle mounting solution for your Panasonic TOUGHBOOK or even provide a quote for the FZ-G2 itself, send us an email with your needs at sales@ruggedordie.com

7160-1265-10 Features

  • Compatible with the Panasonic TOUGHBOOK 20 and G2 2-in-1 tablet computers with attachable keyboards
  • Panasonic Certified electronics
  • Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
  • Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin

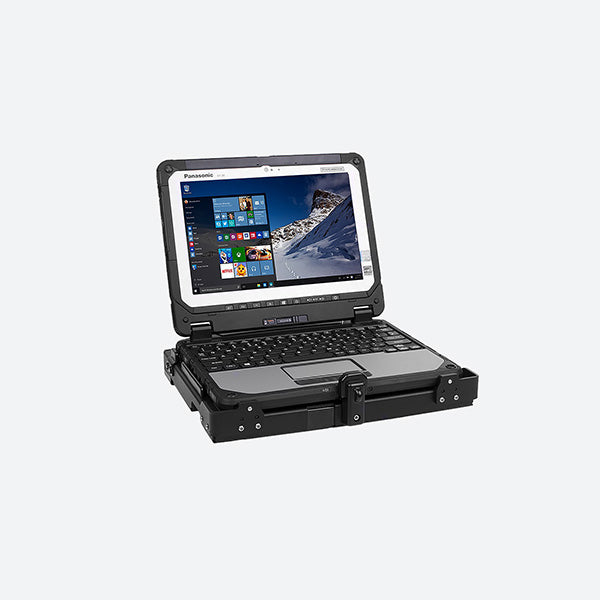

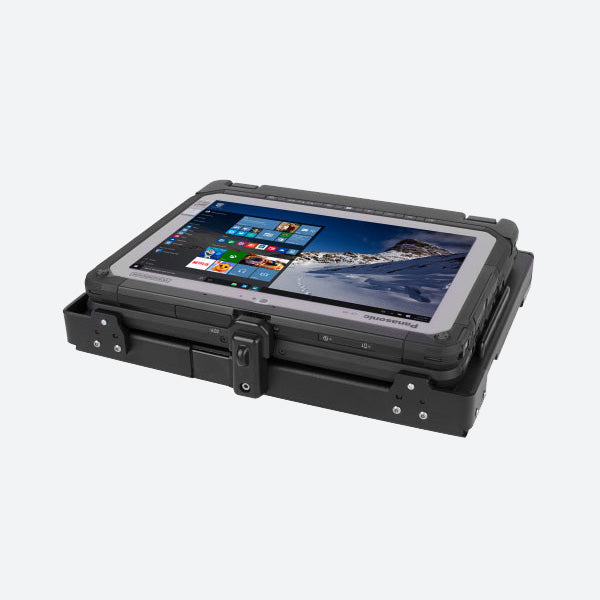

  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety
  • Rear-facing I/O ports, integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Keyed lock for theft deterrence. NOTE: The lock secures the TOUGHBOOK 20 keyboard and tablet, but secures only the keyboard for the G2.
  • VESA 75 mm mounting pattern
  • 3-year limited warranty

Kit Includes:

  • Panasonic TOUGHBOOK 20/G2 Cradle
  • Mounting Hardware
  • Installation Instructions

7160-1265-10 Specifications

Weight

5 lbs / 2.27 kg

Height

10.9 in / 27.69 cm

Width

11.4 in / 28.96 cm

Depth

3 in / 7.62 cm

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

Testing Specifications:

TOUGHBOOK Certified
MIL-STD 810G Shock/Vibration Tested
MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
RoHS, FCC, CE, C-TICK, UKCA
SAE J1455 Shock Crash Hazard Test

Antenna Pass-through:

No RF

$490.91 USD
$490.91 USD
Shipping calculated at checkout.
