Gamber Johnson TOUGHBOOK 20/G2 Lite Port Replication Dock w No RF 7160-1265-20

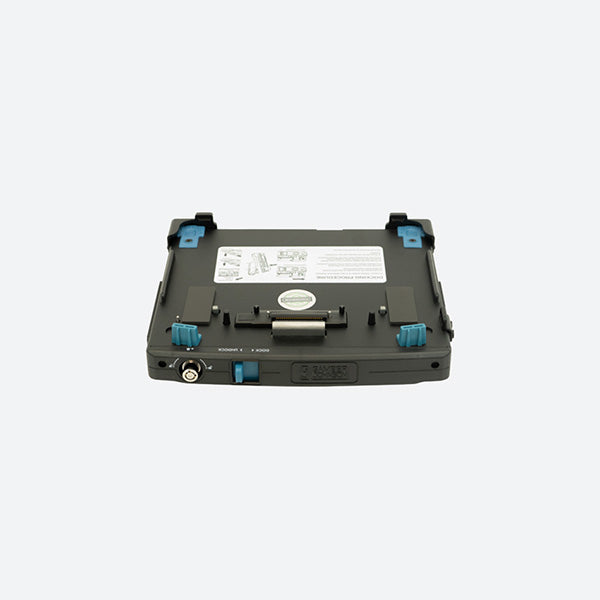

Gamber Johnson Dock 7160-1265-20

Built to be compatible with both Panasonic TOUGHBOOK FZ-G2 and CF-20, the Gamber Johnson docking station 7160-1265-20 features Lite Port replication and No RF pass through. The 7160-1265-20 dock requires that the FZ-G2 or CF-20 have the OEM keyboard attached to the laptop and is compatible with the computer while in laptop mode. A vehicle docking station serves a number of functions, including securing the rugged computer in the vehicle and providing power and port pass through. Utilizing ports on the dock will decrease wear and tear on the ports on the rugged computer. The 7160-1265-20 doesn't provide any RF pass through, so external antennas would not be able to be utilized. If RF pass through is a required feature, please consider alternative Gamber Johnson part number 7160-1265-20 (Dual RF Dock.) Our Rugged or Die sales team can help assemble a complete vehicle mounting solution for your Panasonic TOUGHBOOK or even provide a quote for the FZ-G2 itself, send us an email with your needs at sales@ruggedordie.com

7160-1265-20 Features

  • Compatible with the Panasonic TOUGHBOOK CF-20 and FZ-G2 2-in-1 tablet computers with attachable keyboards
  • Panasonic Certified electronics
  • Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
  • Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety
  • Rear-facing I/O ports, integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Keyed lock for theft deterrence. NOTE: The lock secures the TOUGHBOOK CF-20 keyboard and tablet, but secures only the keyboard for the Panasonic FZ-G2.
  • VESA 75 mm mounting pattern
  • 3-year limited warranty

Kit Includes:

  • Panasonic TOUGHBOOK 20/G2 Docking Station
  • Mounting Hardware
  • Installation Instructions

7160-1265-20 Specifications

Weight

5 lbs / 2.27 kg

Height

2.5 in / 6.35 cm

Width

11.6 in / 29.46 cm

Depth

12.1 in / 30.73 cm

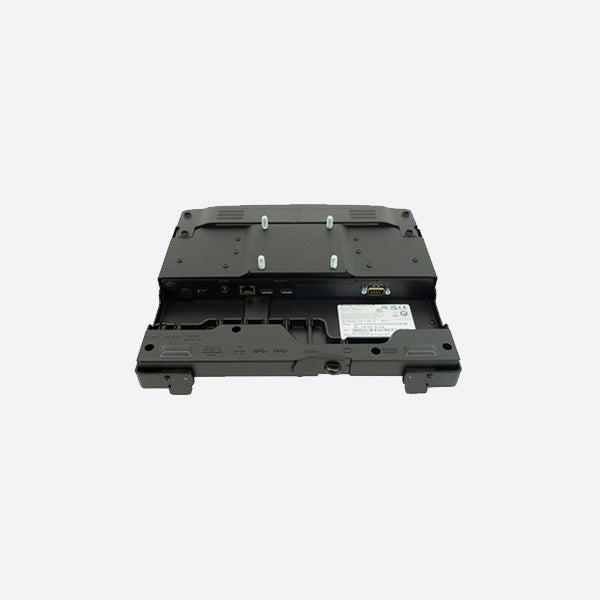

Port Replicators:

Panasonic certified electronics
(2) USB 3.0 - 9 pin
(1) Serial - D-sub 9-pin
(1) Ethernet - RJ45
Antenna switch
Power supply input - DC 15.6V-16V

Antenna Pass-through:

No RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)
