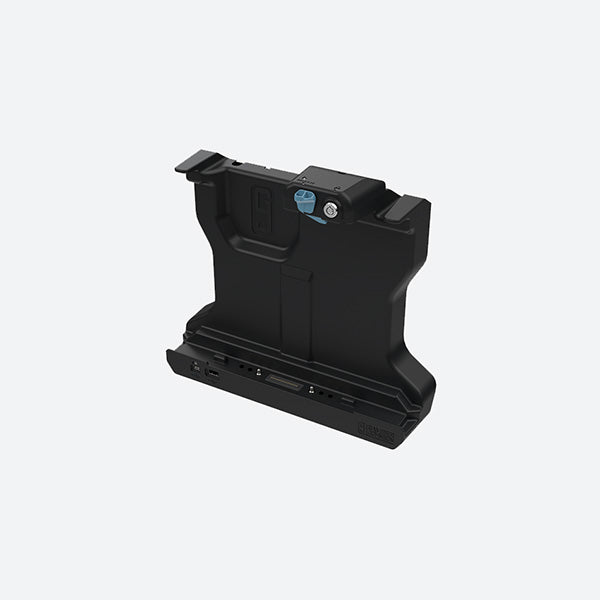

Gamber Johnson F120 Getac Tablet Dock with Lite Port Replication and NO RF 7160-2127-10

Gamber Johnson Dock 7160-2127-10

Specifically built for the rugged Getac F120 tablet, the Gamber Johnson 7160-2127-10 vehicle dock can match the computer for durability and functionality. Featuring MIL-STD 810G testing certification, the 7160-2127-10 dock is able to withstand vibration, heat and cold extremes while protecting the F120 tablet from damage and wear and tear. Featuring a locking latch mechanism, this keyed dock is a great theft deterrent protecting the expensive asset from loss. This Gamber Johnson dock features lite port replicationr. This dock does not include any RF pass for enabling a user to attach external antennas and boost the internal radio signals of the F120 (such as GPS, 5G or WiFi.) If that feature is needed, please consider the Quad RF enabled dock, Gamber Johnson part number 7170-1225-14

7160-2127-10 Features

  • Compatible with the Getac F120 tablet
  • Getac certified electronics
  • One-hand docking and release for efficient use

  • Accommodates the tablet’s hard handle, high-capacity battery, smart card reader and slim hand strap accessories

  • Allows access to all tablet control buttons while the tablet is docked

  • Downward facing rear ports with integrated cable management
  • Floating docking connector ensures reliable pogo pin connection in rugged environments
  • Built-in stylus holder
  • Keyed lock for security
  • VESA 75 mounting pattern

    7160-2127-10 Specifications

    • Weight

      2.3 lbs / 1.04 kg

    • Height

      12.5 in / 31.75 cm

    • Width

      10.45 in / 26.54 cm

    • Depth

      2.88 in / 7.32 cm

      Warranty:

      • 3 Year Limited Warranty
      • Extended Warranty/Gamber Guard Options Available



      Model:

      • F120



      Power Supply:

      • Not Included



      Testing Specifications:

      • Vibration Tested: MIL-STD 810G Operational/Non-Operational
      • Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
      • Environmental: Thermal Shock; High/Low Temperature Operational & Storage
      • FCC, RoHS Certified
      • E-Mark
      • SAE Standard J1455 Crash Test



      Port Replicators:

      • (1) USB-A 2.0 (front)
      • (1) USB-C 2.0 (front)
      • (2) USB-A 3.2
      • (1) USB-C 3.2
      • (1) RJ45
      • (1) RS232 (5V powered on pin 9)
      • Power Input: 19 Vdc



      Antenna Pass-through:

      • NO Pass Through






    $540.00 USD
    $540.00 USD
    Shipping calculated at checkout.
