Havis Dock For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Advanced Port Replication & Havis Power Supply DS-DELL-432N

Havis Dock DS-DELL-432N

Replacement part number for DS-DELL-422

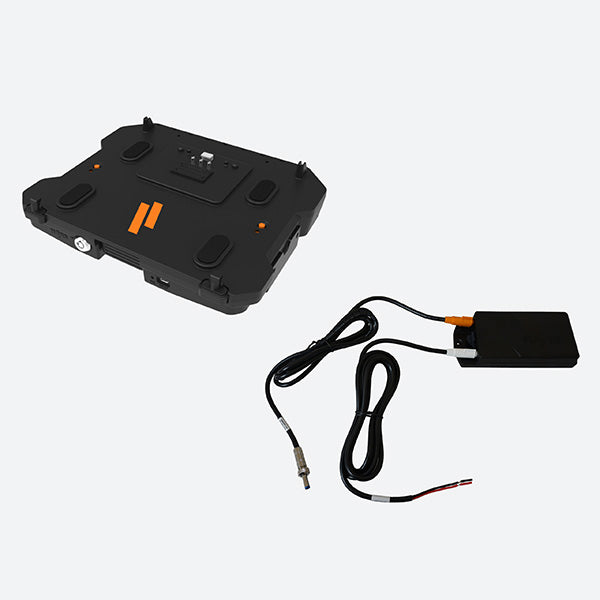

This Havis Docking Station DS-DELL-432N is compatible with numerous Dell rugged laptops. Compatible with the Dell 5430, 7330, 5420, 5424 and 7424 Notebooks, the DS-DELL-432N comes with Advanced Port Replication (includes HDMI and VGA ports) as well as a Havis Power Supply. A Havis vehicle dock is purpose built for rugged laptops and features a locking latch mechanism for added security. This dock does not contain any RF pass through and will not be able to connect to external antennas to boost the internal signal of the Dell laptop; if that feature is needed please consider Havis Part Number DS-DELL-432N-3

DS-DELL-432N Features

• Includes 120W Havis Power Supply (120N-A01-T01-1)

• Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
• Adjustable & lockable front arms accommodate new and legacy notebooks
• One-handed docking & undocking (patent pending)
• Spring-loaded connector head
• Compact & lightweight
• U-style mounting bracket with seating notch for easy installation
• Rounded corners and edges for safety
• Access to all notebook buttons and ports when docked
• Advanced port replication with integrated cable management system
• Also compatible with 5414, 7214, 5404 & 7204 notebooks
• Keyed lock
• Compatible with screen support (DS-DA-412, sold separately)
• Made in USA

DS-DELL-432N Specifications

Compatible devices:    Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications:    UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C), EMC: EN 50498:2010; ESD: ISO 10605:2008
Connectivity includes:    Fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 Jack, Gigabit LAN 10/100/1000 Mb/s. (1), Serial: DB9 (9-Pin) connection (2), Video: VGA (1), HDMI (1), Speaker & Mic: (1 each, front facing), Input Voltage: 19.5V DC
Dimensions:    Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm)
Product weight (dock only):    3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket
Gross weight:    7 lbs
