Havis Dock for Panasonic TOUGHBOOK 55 Advanced Port Replication and Power Supply DS-PAN-432N

Havis Dock DS-PAN-432N

Replacement part for DS-PAN-432

The Havis Docking Station For Panasonic semi rugged TOUGHBOOK 55 Laptop comes with advanced port replication and a purpose built Havis power supply. This dock will hold and lock the FZ-55 securely into place and allow users to connect peripherals and power to the dock itself thereby saving damage and wear and tear from the computer. The DS-PAN-432N is ready to be mounted on any Havis mounting system and comes with integrated cable organization and relief. This dock does not contain any antenna pass through and will not accommodate external antennas, if that feature is required is required please consider Havis part number DS-PAN-432N-2

DS-PAN-432N Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK 55 laptop in public safety, utilities, and other demanding environments
• Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Increased connector protection via retractable cover that protects pins when device is absent
• Lightweight & compact design

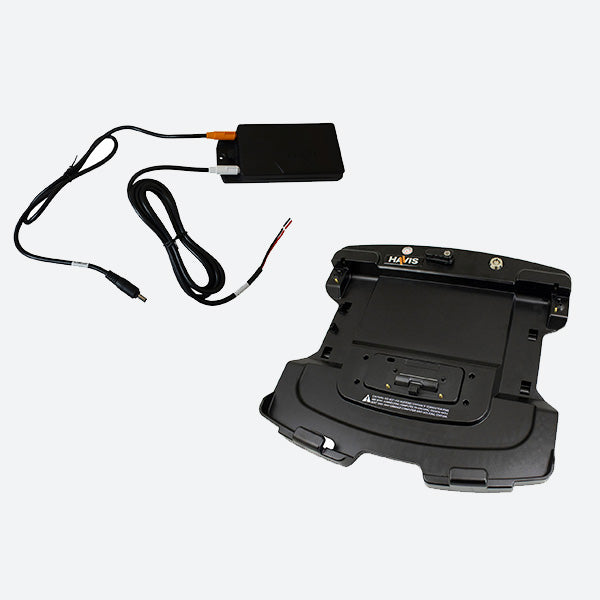

• Bundle includes DS-PAN-431 docking station and 120N-B01-S03-1 power supply
• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK 54 laptop devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Accommodates all Toughbook 54 and 55 models, providing access to bottom SmartCard reader while computer is secured in docking station
• Made in the USA

DS-PAN-432N Specifications

Compatible computer:    Panasonic TOUGHBOOK 54 and 55
Dimensions:    14.1" (35.8 cm) x 13.7" (34.8 cm) x 3.0" (7.6 cm)
Certifications:    Panasonic: TOUGHBOOK Certified, UL safety certified, Vibration Testing: MIL-STD 810G 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold o
Connectivity includes:    fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), serial: DB9 (9-Pin) connection (1), video: VGA (1), HDMI (1), input voltage: 15.6V DC
Product weight:    5.4 lbs.
Gross weight:    8.5 lbs
