How to Lock a CF-33 Tablet to the Lite or Premium Keyboard and VDA

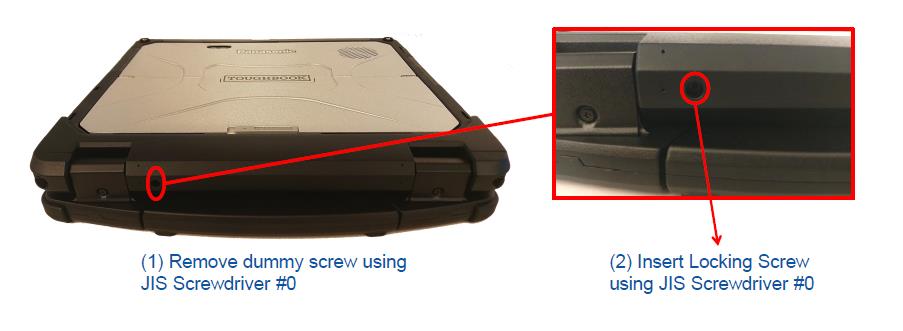

To prevent users from separating the CF-33 tablet from the keyboard, a special screw must be added to the CF-33. The picture below shows the location of the screw.

1. Remove the dummy screw
2. Insert the appropriate screw


Service Part Number                                Used to Lock Following
DRQT2+E10FKL                                         Tablet to Premium Keyboard
DRQT2+E10FKL                                         Tablet to VDA
DRHM5104ZAT                                          Tablet to Lite Keyboard
DRQT26+E6KLT                                         Lite Keyboard to VDA

Solution: 1 Tablet to Premium Keyboard

Locking Screw specification is M2.0 x 10mm (Part Number: DRQT2+E10FKL)

Solution 2: Tablet to VDA

Solution 3: Tablet to Lite Keyboard

Solution 4: Lite Keyboard to VDA
